Gullco Katbak 1G66-B Ceramic Weld Backing Tiles, 12M Box 1G66-B

1G66-B  Gullco Katbak 1G66-B Ceramic Weld Backing Tiles, 12M Box
Click the thumbnails to view larger images
Rapid Ref : 1G66-B

SSP Suggested Selling Price = £ 52.40
YOU SAVE £ 14.62

YOU PAY
£ 37.78
ex VAT
Qty :

Rest Of Shelf
1G66-B  Gullco Katbak 1G66-B Ceramic Weld Backing Tiles, 12M Box
This is for fitting behind a single bevel, single v butt where a fillet weld must be produced on the backside of the joint during welding on the front side of the joint... possibly where access for welding or repairs is not possible. This tile will produce a mitered fillet.
  • Impart X-ray Quality Back Beads On Root Pass
  • Weld One Side Only
  • Deposit More Weld Metal
  • Root Weld And Fill In One Pass
  • Eliminate Defects And Rework
  • Eliminate Costly Unnecessary Gouging And Grinding
  • Special Sizes And Configurations Available
  • Conveniently Packaged and Sealed In Plastic For Moisture Proof Protection
  • Wider Heat Receptive Pressure Sensitive Foil For Improved Adhesion To Work Piece
12m - 40ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.

Gullco Katbak 1G66

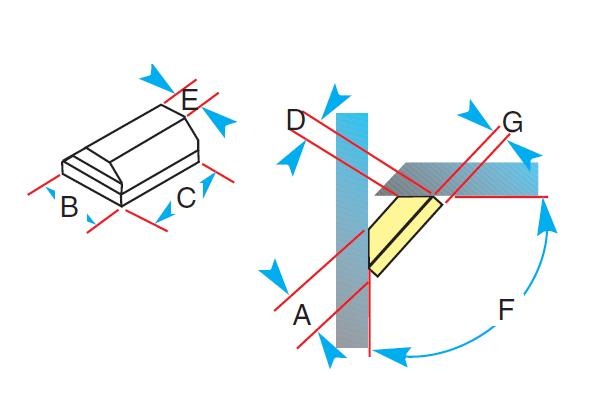

Specifications
A 11/32 in
8.7 mm
B 3/4 in
19 mm
C 1 in
25.4 mm
D 7/32 in
5.6 mm
E 5/16 in
7.9 mm
F 90°
G 1/8 in
3.2 mm
