Gullco Katback 1G93-R-1/4 Ceramic Weld Backing Tiles, 12M Box 1G93-R-14

1G93-R-14  Gullco Katback 1G93-R-1/4 Ceramic Weld Backing Tiles, 12M Box
Click the thumbnails to view larger images
Rapid Ref : 1G93-R-14
YOU PAY
£ 37.78
ex VAT
Qty :

Rest Of Shelf
1G93-R-14  Gullco Katback 1G93-R-1/4 Ceramic Weld Backing Tiles, 12M Box
Similar to the 1G93-R tile but in 1/4” lengths making it much more flexible to wrap around smaller diameters of pipe and vessel.

  • Impart X-ray Quality Back Beads On Root Pass
  • Weld One Side Only
  • Deposit More Weld Metal
  • Root Weld And Fill In One Pass
  • Eliminate Defects And Rework
  • Eliminate Costly Unnecessary Gouging And Grinding
  • Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
  • Special Sizes And Configurations Available
  • Conveniently Packaged and Sealed In Plastic For Moisture Proof Protection
  • Wider Heat Receptive Pressure Sensitive Foil For Improved Adhesion To Work Piece
12m - 40ft./ box
Available in 1/4" to 2"(6.3mm to 50.8mm) tiles.

Gullco Katbak 1G93-R-1/4

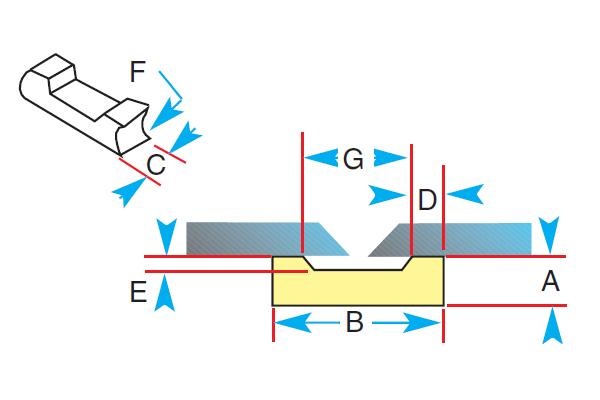

Specifications
A 1/4 in
6.3 mm
B 7/8 to 1 in
22.2 to 25.4 mm
C 1/4 in
6.3 mm
D 5/32 in
4 mm
E 1/16 in
1.6 mm
F 3/16 in
4.8 mm
G 7/16 in
11.1 mm
