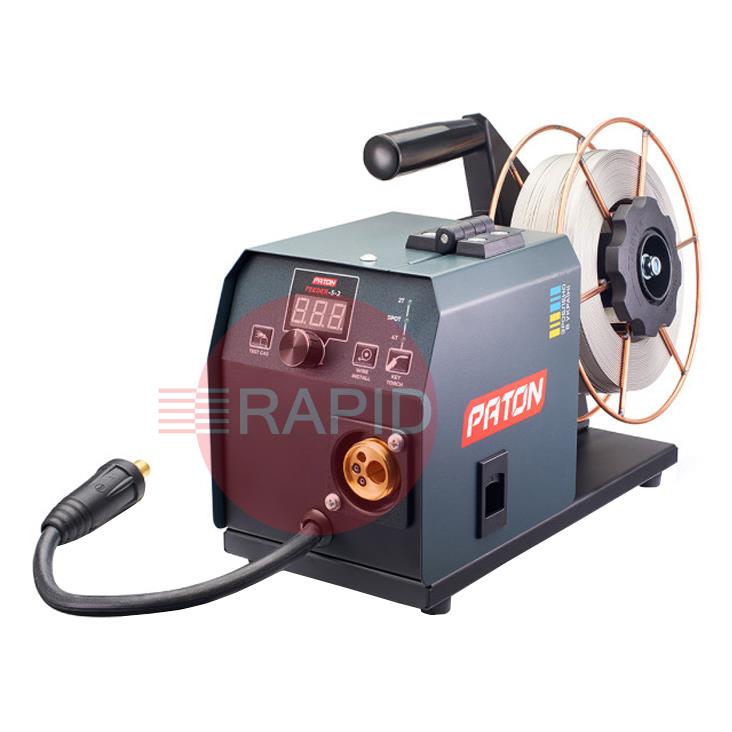

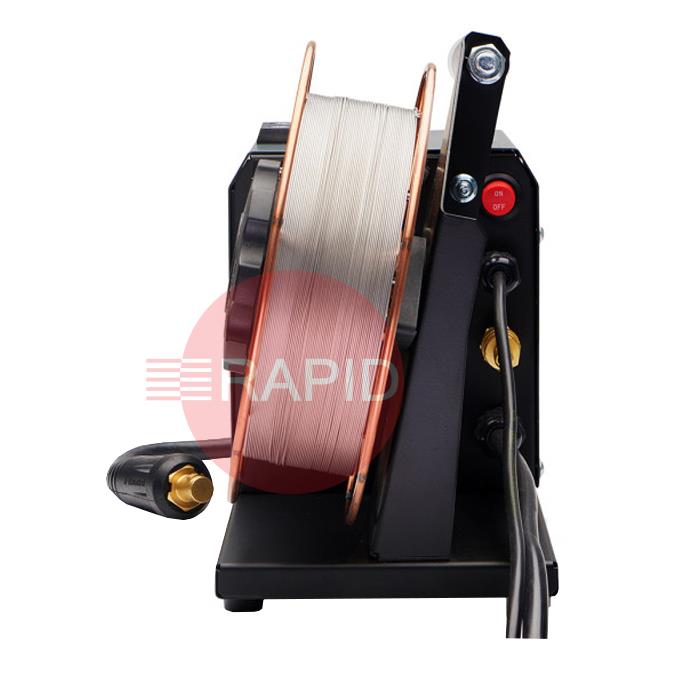

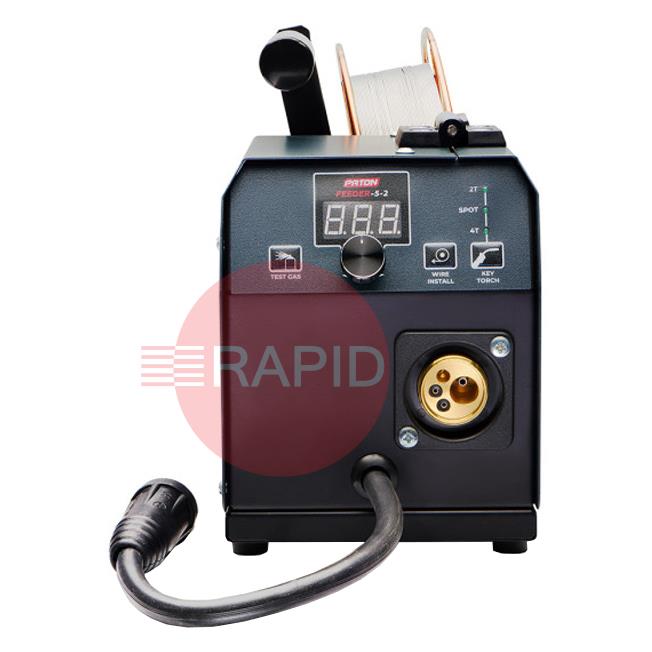

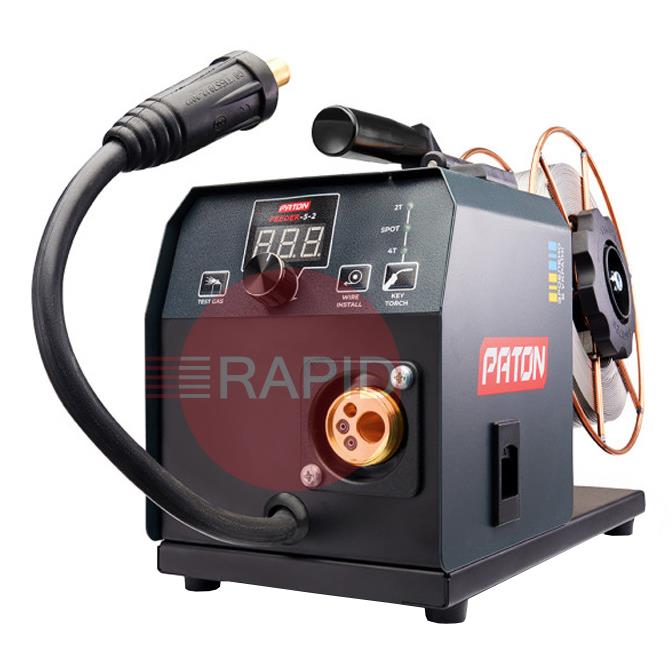

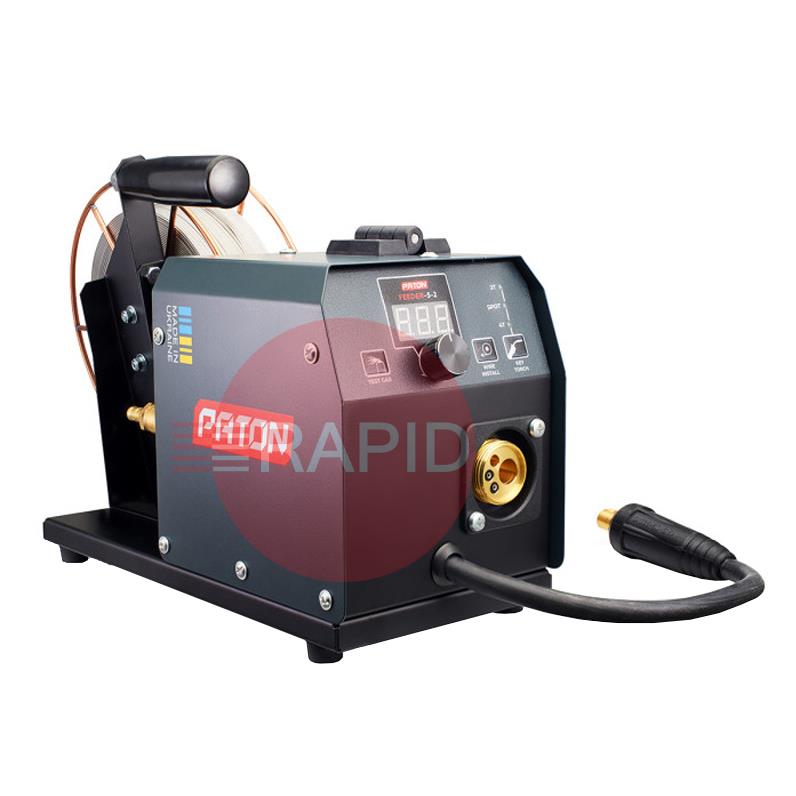

The digital welding wire feeder PATON 5-2 is designed to work with an external welding power source in semi-automatic MIG/MAG welding mode, where the source generates the welding current, and the feeder ensures stable delivery of wire to the welding area.
The feeder has its own power source for the motor, a valve for shielding gas supply, and a control system. A characteristic feature of PATON™ feeders is a very powerful, high-quality sealed metal-wire feeding mechanism, as well as an integrated KZ-2 “EURO” type connector that has become a worldwide standard, allowing users to change the torch to their preference in the future. The device has a built-in shielding gas supply valve.
Specification
| Mains Voltage: |
230v |
| Wire feed speed control range, m/min: |
1,5 - 16,0 |
| Number of pressure rollers |
2 |
| Solid welding wire diameter, mm: |
0,6 - 1,0 |
| Maximum Power Consumption: |
50VA
|
| Dimensions (L x W x H): |
315mm x 155mm x 250mm
|
| Weight: |
4.45kg
|
| Protection Class: |
IP33
|
