Fit Up Clamps FAQs
Answers to common questions about clamps that hold pipe ends in line and at the right gap while you tack them together.
What does a fit up clamp actually do?

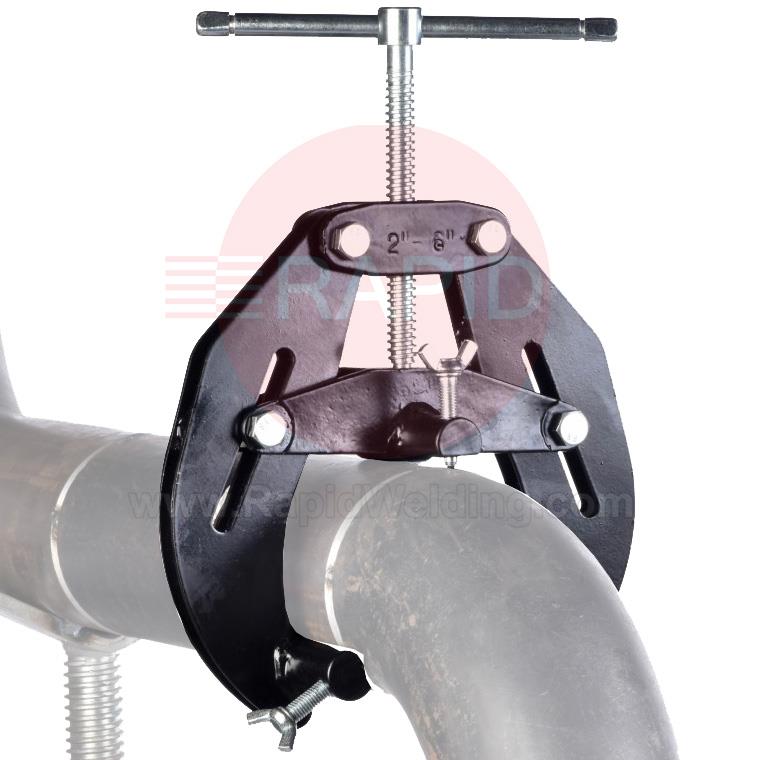

A fit up clamp holds two pipe ends (or a pipe and a fitting) in line with each other while you set the joint and tack it. External types go on the outside of the confronting pipe ends and help bring them to match one another. It helps you keep the gap even all the way round and frees both hands for tacking.
It does not replace good preparation. The bevels and root faces still need to be cut and cleaned properly, and the clamp is only as good as the pipe ends you put in it. Treat it as a way of holding a joint you have already set up correctly, not as a way of forcing a poor joint into shape.
What is hi-lo and why do I need to control it?

Hi-lo is the step between the inner surfaces of two pipe ends where one sits higher than the other. It happens because pipe is never perfectly round, wall thickness is not perfectly uniform around the circumference, and the ends rarely meet exactly.
If it is left uncorrected, it can make the root pass harder to run and can leave a stress concentration at the root of the weld. A fit up clamp lets you correct the step before you tack, typically by adjusting the screws or the bridge. How much hi-lo is acceptable is set by the welding procedure and the governing code for your job, so check those rather than relying on a rule of thumb.
Can I use the same clamp on stainless steel pipe as on carbon steel?

You can, but carbon steel clamps, brushes and tools can transfer iron particles to a stainless surface. Once embedded, those particles can rust and make stainless look as if it is corroding, and they can also encourage local corrosion.
Good practice is to keep tooling used on stainless separate from tooling used on carbon steel, or to clean contact surfaces thoroughly before use, and to avoid steel brushes and wheels previously used on carbon steel. Some clamps are made with stainless contact parts for this reason. Follow your own contamination-control procedure and the pipe maker's guidance.
Can I use a fit up clamp to lift or support a pipe?

No. Alignment and fit up clamps are made to hold pipe ends in position for tacking, not to carry load, and makers state that they should not be used as lifting devices or as load-bearing devices. Never hang a pipe or fitting from the clamp, or use it as a lifting point.
Support the pipe independently, with stands, rollers or suitable lifting equipment, and use proper handling methods for heavy lengths. Your risk assessment should cover manual handling of the pipe, and the clamp's manual will give its own warnings.
