WP-17.

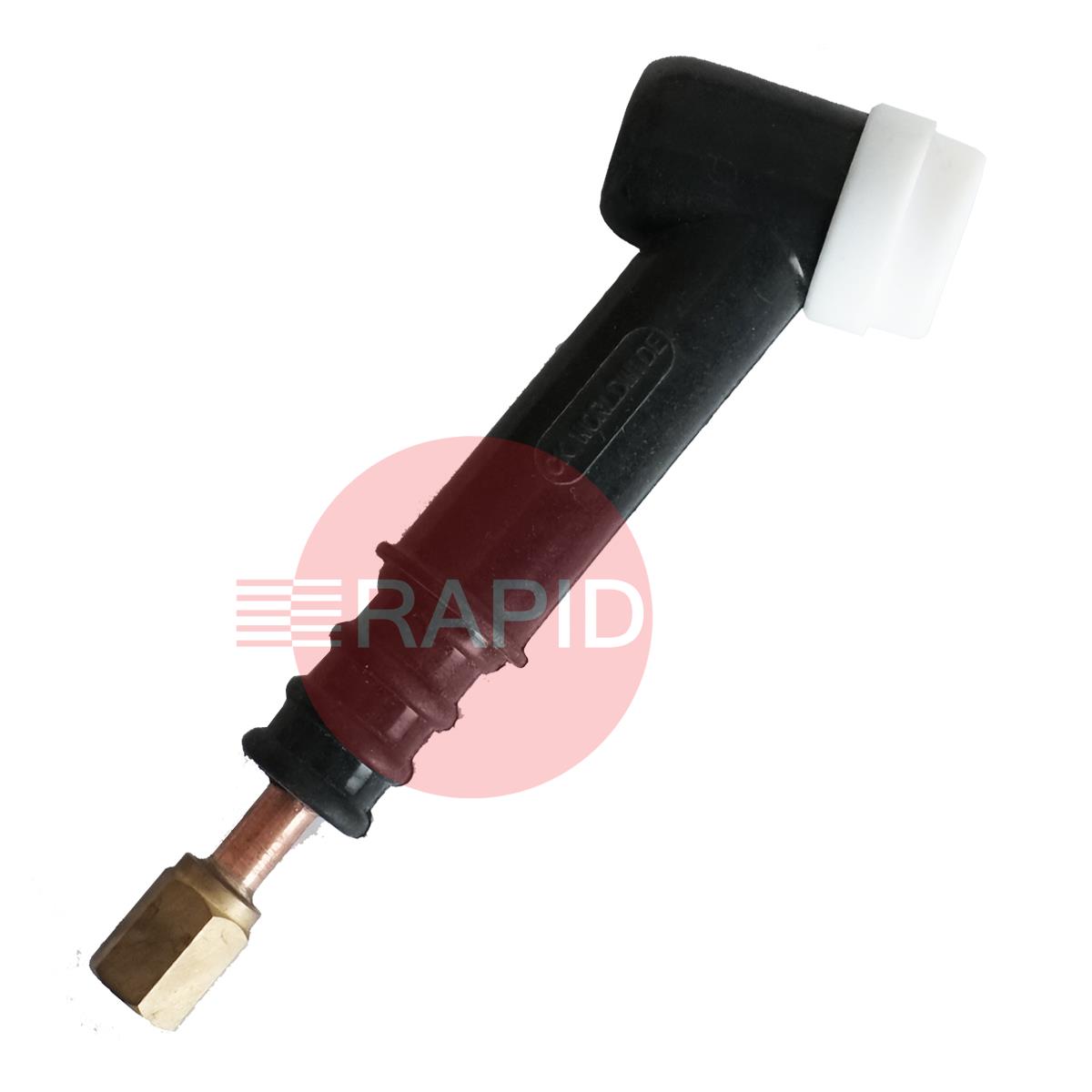

Plain answers on which spare parts wear on a small air-cooled TIG torch, how the part families differ and how to fit and look after them.
The parts that take the heat and handling wear first: collets, cups, O-rings and the back cap. A worn or deformed collet can cause poor arc starts and an unstable arc. A cracked cup or back cap, or a flattened or dried-out O-ring, can let shielding gas leak or draw air in, which shows up as porosity or discoloured welds.A damaged heat shield or insulator can allow arcing or overheating. Look over these parts each time you change the tungsten, and replace anything cracked, distorted, burnt or loose rather than waiting for a failed weld.
An ordinary collet has a slot cut along its end. Under heat and repeated tightening that slotted style can split, twist or jam, which shortens its life. The maker's troubleshooting guide suggests changing to a wedge style when collet life is short, and the maker's parts guide says wedge collets can improve arc starting, stability and control.A wedge collet has no slot and grips by an angled end pressing into the collet body. Claims that it lasts many times longer come from makers and sellers, and independent tests are not widely published, so treat them as a guide only. Always match the collet to the tungsten diameter and make sure it is made for your torch series.
Cups take radiant heat, thermal shock and knocks. The maker's troubleshooting guide lists cup cracking or shattering in use as a short-parts-life problem and suggests changing the cup size or type, or changing the tungsten position, rather than just replacing like for like.Cup material matters. Alumina is the general-purpose, impact-resistant choice, while lava-type ceramic cups are generally used where a lot of heat is reflected back, such as in confined joints. Never scrape spatter off with a tool that could chip the cup, and replace any cup that is cracked or chipped, as a damaged cup can let gas leak and spoil shielding.
The heat shield (sometimes called the insulator or cup gasket) sits between the torch head and the cup. It helps protect the head from radiant heat, helps seal the gas path so gas goes to the cup, and provides electrical insulation between the head and the cup.Let the torch cool before removing it, and check how it fits in your manual or parts chart. Replace it if it is cracked, burnt, loose or no longer seals. Heat shields are shaped to suit the cup and torch, so use the shield from the same parts family as your cup.
