    Rapid Ref : CK-212AHSF  Mfr Ref : 212AHSF

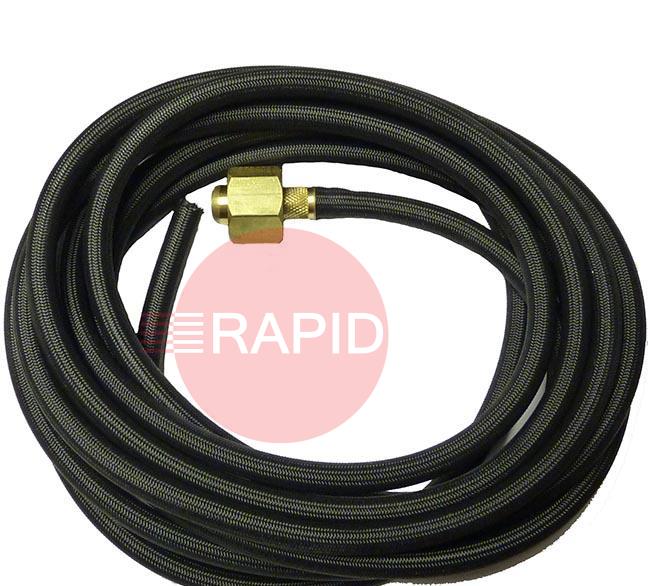

    CK 3.8m (12.5ft) Superflex Argon Hose, G3/8" Machine Connection 45V09SF
    212AHSF CK-212AHSF

    £27.80  EX VAT
    SSP Suggested Selling Price = £55.60  YOU SAVE £27.80

    SuperFlex.

    CK MR140 Torch Parts FAQs

    Spare parts for a water-cooled micro TIG torch: what wears, what each part does and how to match the right replacement.

    When would I use a gas lens instead of a standard collet body?icon-minus-redicon-plus-red

    A gas lens takes the place of the standard collet body and passes the shielding gas through fine mesh, which reduces turbulence and gives smoother gas coverage. Torch makers say this can allow a longer tungsten stick-out, which helps you see the weld pool and reach into tight joints. A standard collet body is simpler and often perfectly good for everyday work with a short stick-out.

    Only the body changes. Check your manual for the collet type and the cup that your torch takes with a gas lens, and make sure both match the tungsten diameter. The fine mesh can become dirty or damaged, so inspect it whenever you change the electrode.

    Which parts of a micro torch wear out and how can I tell?icon-minus-redicon-plus-red

    Typical wear items are the tungsten, collet, collet body or gas lens, cup, O-rings, insulator and back cap. Look for a tungsten that will not stay gripped, a collet or body with damaged threads or heat marks, a cracked or chipped cup, and a seal that is flattened or missing. Too much current can overheat and distort the collet and collet body.

    Torch makers advise checking all the consumable parts before each use, cleaning them and replacing any that are damaged straight away. Wear depends on the current, the duty cycle and how carefully the torch is handled, so there is no fixed replacement interval.

    How can I tell if a water-cooled torch has a leak, and what do I do?icon-minus-redicon-plus-red

    Signs include drips or damp at the torch head, handle or hose joints, a falling coolant level, or a torch that overheats. The leak may start somewhere other than where the water shows, such as the cooler, a water line, the cable or the neck. Common causes are loose connections, worn seals or O-rings and a damaged hose. Low coolant flow can overheat the torch, and a liquid-cooled cable assembly can leak if it overheats.

    Stop welding and switch off. Touching live metal parts can give a fatal electric shock, so never carry on welding with a leak. Replace the faulty part with the correct one, use the coolant the maker specifies, and check the level and the flow before striking an arc.

    What should I know about thoriated electrodes when buying spare tungsten?icon-minus-redicon-plus-red

    Thoriated tungsten contains a small amount of radioactive thorium. The greatest hazard is the fine dust made when grinding, not the welding itself, so grinding should be done on a dedicated wheel with local dust extraction, with suitable respiratory protection worn unless only a very small number of electrodes is ground, and eye protection if the wheel has no viewing screen. Ceriated or lanthanated electrodes are generally acceptable alternatives, and using a thoriated type should be justified.

    HSE guidance on welding fume points to local exhaust ventilation for regular TIG welding indoors. When you buy spare tungsten, check the type marking on the pack and the safety data sheet, and consider in your risk assessment whether a thorium-free type would do the job.
