    Rapid Ref : CK-514CCS  Mfr Ref : 514CCS

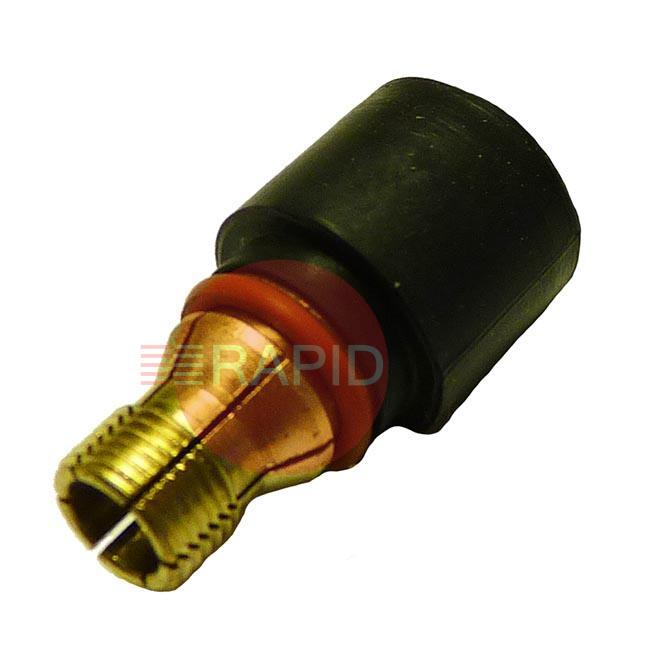

    Collet Cap Short for 6.4mm (1/4")
    514CCS CK-514CCS

    £25.65  EX VAT
    SSP Suggested Selling Price = £51.30  YOU SAVE £25.65

    CK510 Torch Parts FAQs

    Spares for a water-cooled TIG torch: the front-end parts, back caps and hoses, how to tell what is worn and how to order the right part.

    What hoses does a water-cooled TIG torch have and how are they connected?icon-minus-redicon-plus-red

    A water-cooled torch normally has a coolant feed hose and a coolant return hose between the torch and the cooling unit, plus the power cable and a shielding gas hose. Torch makers list the water hose, the gas (argon) hose and the power cable as separate parts, and some connect the water return through the power cable, so check which way round your hoses must go. A maker's troubleshooting guide lists reversed coolant flow as a cause of short cable life.

    Colour coding often helps you match the coolant hoses to the cooling unit, but connection details differ, so follow your torch and cooler manuals. When you buy a replacement hose, check its length, the connector at each end and whether it is the coolant or the gas hose.

    How do I check water hoses for leaks, and why does it matter?icon-minus-redicon-plus-red

    Before striking an arc, run the cooler and look and feel along the hoses and at every connection for drips, bulging, thinning walls, kinks or cracks. One maker's manual says to check all coolant connections for tightness and leaks at every start-up, and never to operate a water-cooled torch without coolant. A leak can also let coolant reach the floor and equipment, which adds an electric shock risk.

    The insulation on welding torches and cables should be undamaged, equipment should be checked before use, and unserviceable equipment should be withdrawn and marked as not for use. Do not tape over a leak as a repair.

    Why do I get porosity or poor gas shielding after changing torch parts?icon-minus-redicon-plus-red

    A maker's TIG troubleshooting guide lists a blocked or leaking gas hose or torch, a loose connection, excessive tungsten stick-out, draughts and too much gas turbulence as causes of inadequate shielding and porosity. After a parts change, check that the gas hose connections are tight, the collet body or gas lens is seated, the back cap is fitted with its O-ring in good condition, and the cup is undamaged.

    The same guide suggests gas lens or gas saver parts where turbulence is the problem, and reducing the stick-out or fitting a larger cup. Recheck assembly against your torch manual before changing gas settings, and keep the gas supply and hoses leak-free.

    How do I match the collet and collet body to my tungsten electrode?icon-minus-redicon-plus-red

    Torch makers list collets and collet bodies by tungsten diameter and by torch series, so you need both pieces of information. Check the diameter of the tungsten you actually use, then check the torch series from the torch manual, the markings on the body, or the old part if it carries a size marking.

    A collet that is the wrong size will not clamp the electrode evenly, which causes poor current transfer, overheating and a tungsten that slips. Parts that look alike across torch series are often not interchangeable, because thread patterns differ, so confirm the match before ordering rather than relying on appearance.
