    Rapid Ref : CK-A116C20  Mfr Ref : A116C20

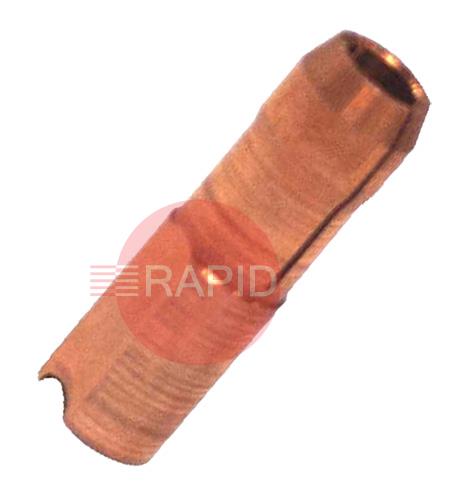

    Collet for 1.6mm (1/16")
    A116C20 CK-A116C20

    £3.45  EX VAT
    SSP Suggested Selling Price = £6.90  YOU SAVE £3.45

    2304-0136 MS1112.

    CK 51 Series Parts FAQs

    Collets, gas lenses and related spares for a TIG torch: how to match them to your tungsten and torch, and how to look after them.

    How do I match a collet or gas lens to my tungsten size?icon-minus-redicon-plus-red

    The collet, the collet body and the gas lens are all sized by the diameter of the tungsten electrode. A maker's selection guide gives the example that a 3/32 inch (2.4 mm) electrode needs a 3/32 inch (2.4 mm) collet and a collet body or gas lens of the same size. Inch and millimetre sizes are close but not identical, so check the marking.

    The torch type also matters, because there are different part sizes for different torch types. Check the size stamped on the old part or listed in your manual, and treat collet, body and tungsten as a matched set.

    Do I need a special cup with a gas lens, and how are cups sized?icon-minus-redicon-plus-red

    Yes. A maker's guide says collet bodies and gas lenses are different sizes and need cups specific to their thread pattern, so a standard cup and a gas lens cup are not interchangeable. Cup size also depends on the torch type, and the larger the cup opening, the more gas coverage you get. Larger tungsten diameters, which run at higher current, are typically used with larger cups.

    Cups are numbered by size, and the number usually relates to the opening in sixteenths of an inch, but charts vary, so check the actual opening. Note the cup type and thread on your existing parts or in the manual before ordering.

    Which tungsten type should I use with a gas lens for AC and DC?icon-minus-redicon-plus-red

    The tungsten type depends on the current and metal, not on the gas lens. A technical page from a welding-equipment maker states that pure tungsten suits AC only, zirconiated tungsten is mainly for AC, and lanthanated and ceriated types suit both AC and DC.

    Another maker's guide says pure tungsten can start poorly on modern inverter machines and recommends ceriated or lanthanated instead. The colour band identifies the type, but check the packaging because colours vary between suppliers. Match the electrode diameter to your current range, and to the collet and gas lens you have fitted.

    Is there a hazard in grinding tungsten electrodes for a TIG torch?icon-minus-redicon-plus-red

    Yes, if the electrode contains thorium oxide. Grinding releases fine, slightly radioactive dust that is harmful if inhaled. A dedicated grinder with local dust extraction, careful disposal of the dust and washing before breaks are advised, and thoriated electrodes should be justified over alternatives.

    Ceriated and lanthanated electrodes are generally accepted alternatives, and zirconiated types are often used for AC. If you already use thoriated electrodes, follow your risk assessment and the supplier's safety data sheet for grinding, handling and storage.
