    Rapid Ref : CK-A332C20  Mfr Ref : A332C20

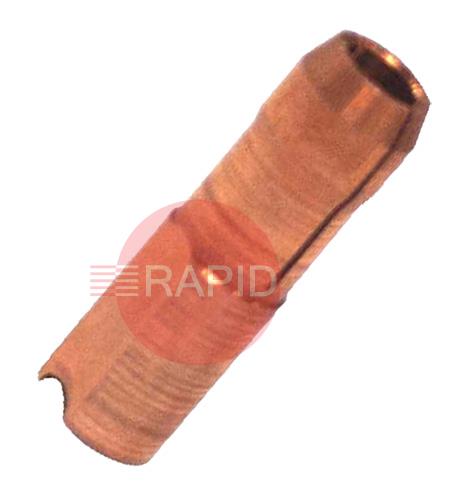

    Collet for 2.4mm 3/32"
    A332C20 CK-A332C20

    £3.45  EX VAT
    SSP Suggested Selling Price = £6.90  YOU SAVE £3.45

    2304-0135 MS1112.

    CK 51 Series Parts FAQs

    Collets, gas lenses and related spares for a TIG torch: how to match them to your tungsten and torch, and how to look after them.

    What is the difference between a standard collet body and a gas lens?icon-minus-redicon-plus-red

    Both screw into the torch head, hold the collet in place and pass shielding gas to the cup. A standard collet body releases the gas through small holes around its base. A gas lens makes the gas pass through fine mesh screens first, which smooths the flow and makes it less turbulent.

    Torch makers say gas lens parts reduce turbulence, improve coverage and allow more tungsten stick-out. A gas lens needs a cup made for its thread, so check what your torch takes before changing, and follow your torch manual.

    Do I need a special cup with a gas lens, and how are cups sized?icon-minus-redicon-plus-red

    Yes. A maker's guide says collet bodies and gas lenses are different sizes and need cups specific to their thread pattern, so a standard cup and a gas lens cup are not interchangeable. Cup size also depends on the torch type, and the larger the cup opening, the more gas coverage you get. Larger tungsten diameters, which run at higher current, are typically used with larger cups.

    Cups are numbered by size, and the number usually relates to the opening in sixteenths of an inch, but charts vary, so check the actual opening. Note the cup type and thread on your existing parts or in the manual before ordering.

    Is there a hazard in grinding tungsten electrodes for a TIG torch?icon-minus-redicon-plus-red

    Yes, if the electrode contains thorium oxide. Grinding releases fine, slightly radioactive dust that is harmful if inhaled. A dedicated grinder with local dust extraction, careful disposal of the dust and washing before breaks are advised, and thoriated electrodes should be justified over alternatives.

    Ceriated and lanthanated electrodes are generally accepted alternatives, and zirconiated types are often used for AC. If you already use thoriated electrodes, follow your risk assessment and the supplier's safety data sheet for grinding, handling and storage.

    How far can the tungsten stick out with a gas lens?icon-minus-redicon-plus-red

    A gas lens generally allows more stick-out than a standard collet body, because the smoother gas column protects the tungsten and weld pool for longer. A torch maker's data sheet gives general-purpose extension as a small multiple of the tungsten diameter beyond the end of the cup, and a larger limit only in draft-free conditions.

    Guides measure stick-out differently, some from the collet and some from the cup, so check which your manual means. Keep it as short as the joint allows. If you see a dark or porous weld, shorten the stick-out and check the gas flow, seals and cup before anything else.
