    Rapid Ref : CK-A532C35  Mfr Ref : A532C35

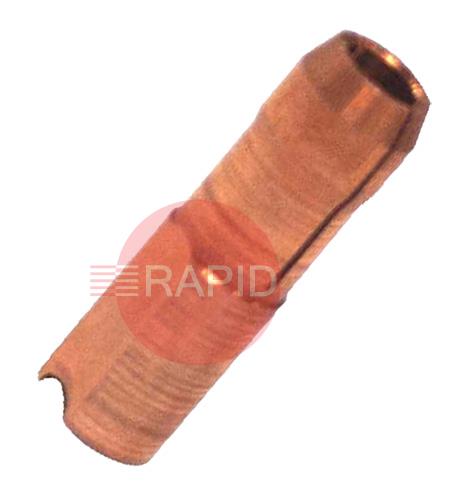

    Collet for 4mm (5/32")
    A532C35 CK-A532C35

    £3.45  EX VAT
    SSP Suggested Selling Price = £6.90  YOU SAVE £3.45

    2304-0091 MS1111.

    CK 51 Series Parts FAQs

    Collets, gas lenses and related spares for a TIG torch: how to match them to your tungsten and torch, and how to look after them.

    What is the difference between a standard collet body and a gas lens?icon-minus-redicon-plus-red

    Both screw into the torch head, hold the collet in place and pass shielding gas to the cup. A standard collet body releases the gas through small holes around its base. A gas lens makes the gas pass through fine mesh screens first, which smooths the flow and makes it less turbulent.

    Torch makers say gas lens parts reduce turbulence, improve coverage and allow more tungsten stick-out. A gas lens needs a cup made for its thread, so check what your torch takes before changing, and follow your torch manual.

    Which tungsten type should I use with a gas lens for AC and DC?icon-minus-redicon-plus-red

    The tungsten type depends on the current and metal, not on the gas lens. A technical page from a welding-equipment maker states that pure tungsten suits AC only, zirconiated tungsten is mainly for AC, and lanthanated and ceriated types suit both AC and DC.

    Another maker's guide says pure tungsten can start poorly on modern inverter machines and recommends ceriated or lanthanated instead. The colour band identifies the type, but check the packaging because colours vary between suppliers. Match the electrode diameter to your current range, and to the collet and gas lens you have fitted.

    Is there a hazard in grinding tungsten electrodes for a TIG torch?icon-minus-redicon-plus-red

    Yes, if the electrode contains thorium oxide. Grinding releases fine, slightly radioactive dust that is harmful if inhaled. A dedicated grinder with local dust extraction, careful disposal of the dust and washing before breaks are advised, and thoriated electrodes should be justified over alternatives.

    Ceriated and lanthanated electrodes are generally accepted alternatives, and zirconiated types are often used for AC. If you already use thoriated electrodes, follow your risk assessment and the supplier's safety data sheet for grinding, handling and storage.

    How far can the tungsten stick out with a gas lens?icon-minus-redicon-plus-red

    A gas lens generally allows more stick-out than a standard collet body, because the smoother gas column protects the tungsten and weld pool for longer. A torch maker's data sheet gives general-purpose extension as a small multiple of the tungsten diameter beyond the end of the cup, and a larger limit only in draft-free conditions.

    Guides measure stick-out differently, some from the collet and some from the cup, so check which your manual means. Keep it as short as the joint allows. If you see a dark or porous weld, shorten the stick-out and check the gas flow, seals and cup before anything else.
