Rapid Ref : EZG3  Mfr Ref : GBC3

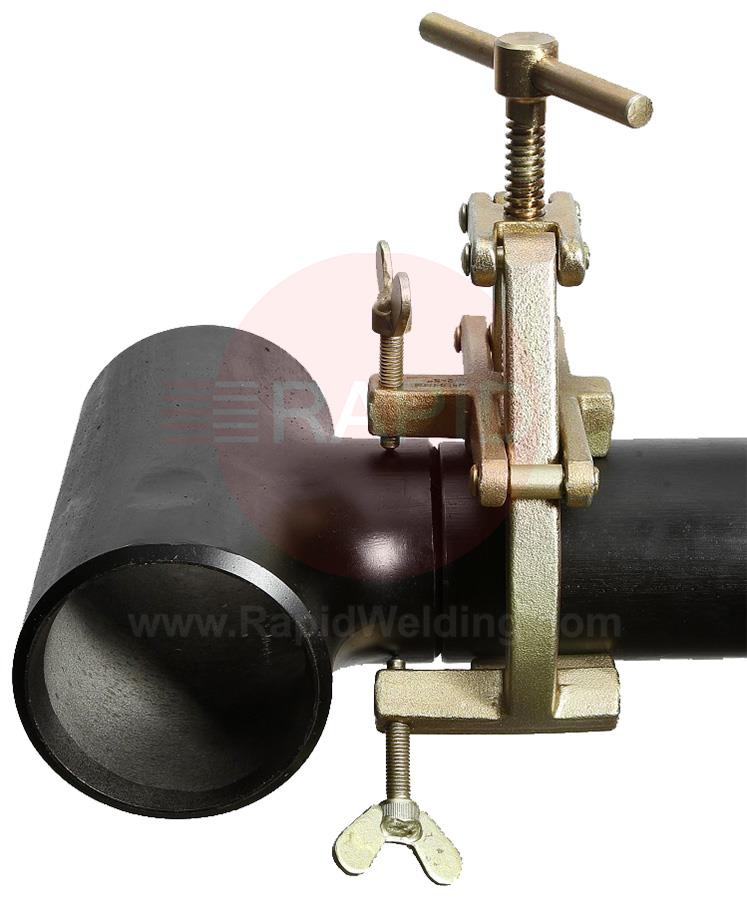

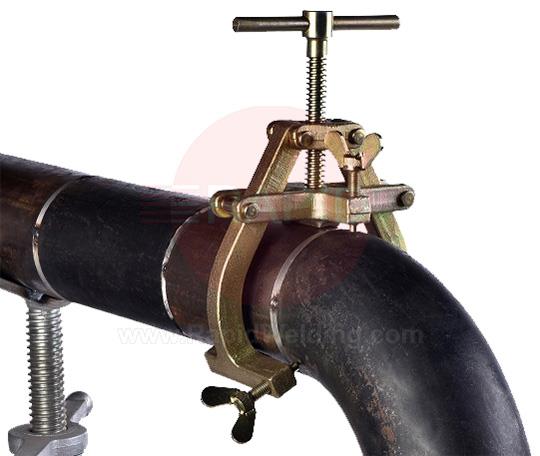

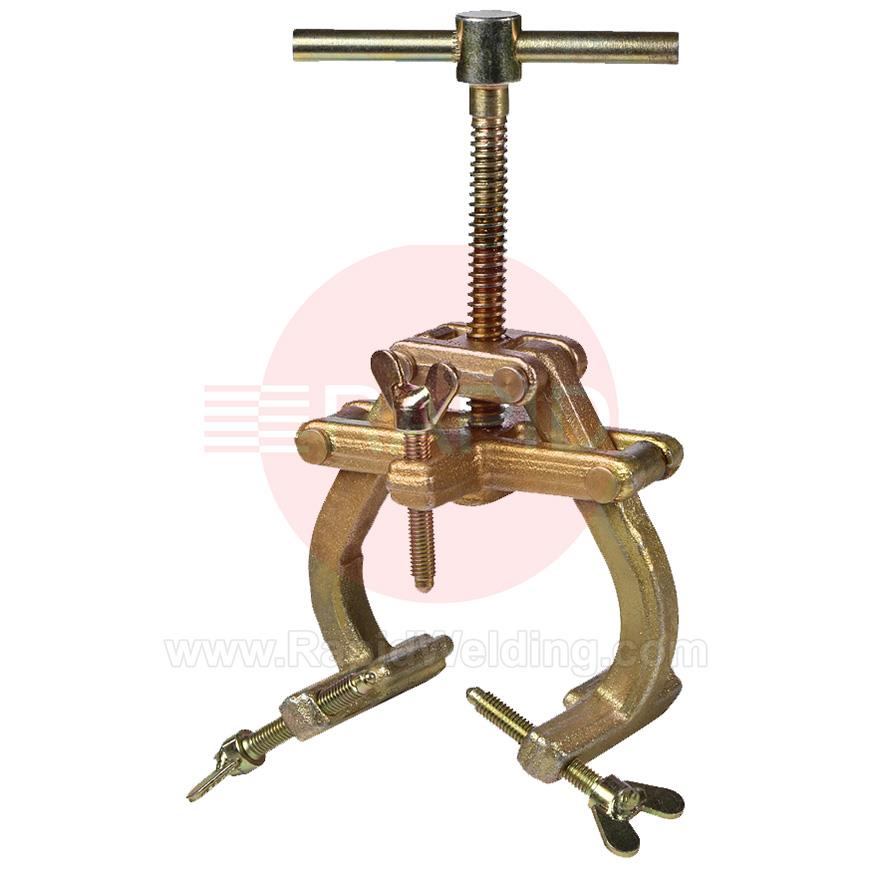

Gold Bridge Pipe Clamp, 1 - 3" (25 - 76mm)
GBC3 EZG3

£42.90  EX VAT
 Buy in 3 easy interest free payments of £14.30† with

The Gold Bridge Clamp is manufactured out of forged steel to enable maximum strength and durability. A quality product at a low cost.

Features

  • Quick and easy to use
  • Combines accuracy with safety
  • Instant centring
  • Wing bolts with stainless steel bearings

Product Details

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure

Related Items

Fit Up Clamps FAQs

Answers to common questions about clamps that hold pipe ends in line and at the right gap while you tack them together.

What is hi-lo and why do I need to control it?icon-minus-redicon-plus-red

Hi-lo is the step between the inner surfaces of two pipe ends where one sits higher than the other. It happens because pipe is never perfectly round, wall thickness is not perfectly uniform around the circumference, and the ends rarely meet exactly.

If it is left uncorrected, it can make the root pass harder to run and can leave a stress concentration at the root of the weld. A fit up clamp lets you correct the step before you tack, typically by adjusting the screws or the bridge. How much hi-lo is acceptable is set by the welding procedure and the governing code for your job, so check those rather than relying on a rule of thumb.

Can I use the same clamp on stainless steel pipe as on carbon steel?icon-minus-redicon-plus-red

You can, but carbon steel clamps, brushes and tools can transfer iron particles to a stainless surface. Once embedded, those particles can rust and make stainless look as if it is corroding, and they can also encourage local corrosion.

Good practice is to keep tooling used on stainless separate from tooling used on carbon steel, or to clean contact surfaces thoroughly before use, and to avoid steel brushes and wheels previously used on carbon steel. Some clamps are made with stainless contact parts for this reason. Follow your own contamination-control procedure and the pipe maker's guidance.

Can I use a fit up clamp to lift or support a pipe?icon-minus-redicon-plus-red

No. Alignment and fit up clamps are made to hold pipe ends in position for tacking, not to carry load, and makers state that they should not be used as lifting devices or as load-bearing devices. Never hang a pipe or fitting from the clamp, or use it as a lifting point.

Support the pipe independently, with stands, rollers or suitable lifting equipment, and use proper handling methods for heavy lengths. Your risk assessment should cover manual handling of the pipe, and the clamp's manual will give its own warnings.

Should I tack weld with the clamp on, and what makes a good tack?icon-minus-redicon-plus-red

Fit up clamps are designed for you to set the joint, tack it, and then release the clamp. Tacking can pull a joint slightly out of position, so recheck the gap and alignment after tacking, and ideally before you take the clamp off. How many tacks you need, and when the clamp comes off, depends on the pipe size, wall thickness, material and your welding procedure.

Tacks should be inspected, and any slag, porosity, lack of fusion or cracks removed before the root pass. Feathered tack ends should be ground or blended so that they merge into the final weld. Tacks must also follow the welding procedure, including any preheat, because rapid cooling of a small tack can leave brittle, crack-prone metal.
