    Rapid Ref : GK-165-052-1

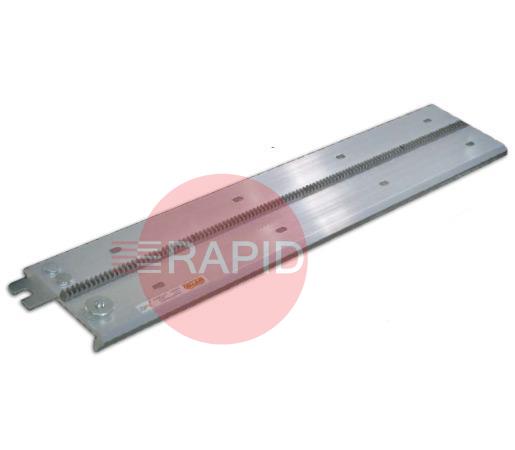

    Gullco KAT® Rigid Track Section – Aluminium Alloy - 96” (2438mm)
    GK-165-052-1

    £416.00  EX VAT
     Buy in 3 easy interest free payments of £138.67† with
    Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

    Related Items

    Gullco KAT Track Sections FAQs

    Answers to common questions about the track sections that guide welding and cutting carriages.

    How is track held to the work?icon-minus-redicon-plus-red

    Track is usually fixed with magnetic units on ferromagnetic material such as carbon steel, or with vacuum units. On stainless steel, aluminium and other non-ferrous metals magnets do not hold, so vacuum or mechanical clamping is required.

    Flexible track on curved vessels often needs extra brackets or clamps. Whichever method you use, make sure the track cannot shift or lift under the weight of the carriage, particularly on vertical or overhead runs, and follow the maker's instructions.

    What happens if my work is tighter than the minimum bend radius?icon-minus-redicon-plus-red

    Each flexible track is made with a specific minimum bending limit. Bending it beyond that can reduce stability, interfere with torch movement or damage the track itself.

    If your curve is tighter than the track allows, you need a different type of track made for tight curvature or full circumference work, or a different way of guiding the torch. The limit depends on the track, so check the maker's data before you plan the set-up, and do not force a section round.

    Can I use rigid track for vertical or overhead welding?icon-minus-redicon-plus-red

    Rigid track with a strong magnetic or vacuum mounting is generally recommended for out-of-position work, because the carriage, torch and cables put more load on the fixings and the track must stay perfectly stable.

    Check the maker's weight and load limits, test the fixing before welding, and make sure nobody can be under the work if something slips. Where the surface is non-ferrous, magnets will not do the job, so vacuum or mechanical clamping is needed. The risk assessment for the job should cover this.

    How do I choose the length of track I need?icon-minus-redicon-plus-red

    Measure the full length of the seam and allow extra at both ends so the carriage can reach the start and finish with the torch correctly positioned, and has room to stop safely before the end of the track.

    Track comes in set lengths, and sections can usually be joined end to end for longer runs. If you plan to join sections, use the maker's connectors and check the joint is supported, because a weak joint can let the carriage jerk or the track flex.

    See the maker's information for the lengths and joining options for your carriage.
