Rapid Ref : GK-200-RLXI

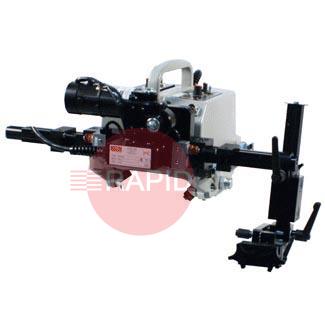

Gullco KAT Torch Indexing Automation Carriage - Rigid Track 0.5 – 16.4 IPM (1.2 - 41.6 cm/min)
GK-200-RLXI

Select Option
Prices From £7973.00 ex VAT

Automates Overlay/Cladding Welding Operations

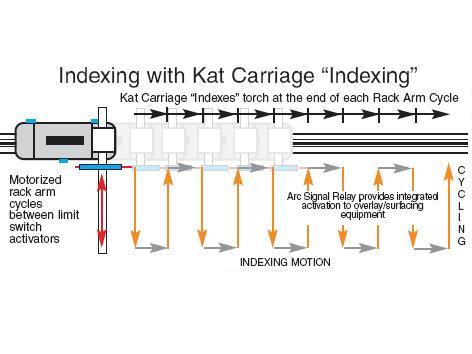

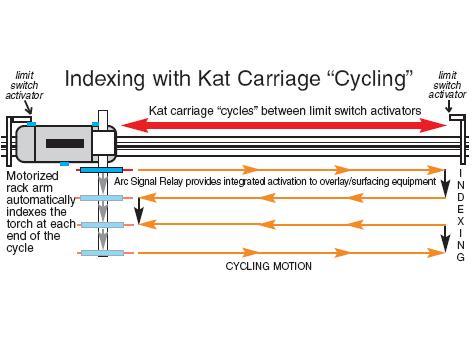

The Gullco KAT® Indexing System is typically used to automate single or multi-head overlay/cladding welding operations, hard surfacing, etc. The automatic routine drives a motorised device (either the KAT® carriage or the motorised rack arm), cycling back and forth between limit switches. When the device that is cycling reaches a limit switch, it pauses, and the other motorised device starts to index the gun/torch a pre-set distance in a pre-set direction. An Arc Signal Relay is supplied with the system to provide integrated arc activation signals to the overlay/surfacing equipment. Two GSP controls, each with dedicated microprocessor chips, are used to control the automatic, two-axis indexing system. One GSP control is the Cycle Control and the other is the Index Control. Each control offers user-programmable parameters/variables to allow fine-tuning and functional control of the automatic cycle. Gullco Indexing Systems, enable repetitive overlay/ surfacing cycles to be performed, with a precise motion of the gun/torch from start to finish, regardless of the number of passes of the workpieces involved.

Main Components: KAT® Travel Carriage, KAT® Carriage/Indexer controls, Motorised Indexer Rack Box, Heavy Duty Rack Arm, Control Cable, Limit Switch activators for Carriage and Rack Arm, Torch Holder for standard MIG gun.

Brochures & Manuals

Gullco KAT Carriages FAQs

Answers to common questions about track-mounted automation carriages for welding and cutting.

What is the difference between rigid track and flexible track carriages?icon-minus-redicon-plus-red

A rigid track carriage runs on a straight, non-bending rail and suits flat work and straight seams. A flexible track carriage runs on a rail that can be bent to follow a gentle curve, such as the side of a tank or a large-diameter pipe.

Each flexible track has a minimum bending radius set by the maker, and going tighter than that can upset stability and torch movement or even damage the track.

Check the track type, the curvature of your work and the carriage load against the maker's data sheet before choosing.

How is a track-mounted carriage held to the workpiece?icon-minus-redicon-plus-red

Track is usually fixed to the work with magnetic units or vacuum units, depending on the material. Magnetic mounting works only on ferromagnetic material such as carbon steel. On stainless steel and aluminium, where magnetic grip is not possible, vacuum mounting is needed.

A secure mount matters even more for out-of-position runs, because the fixings carry the whole carriage and torch load. Always follow the maker's instructions for the fixing method and weight limits, and check the track cannot shift before you start travelling.

How does travel speed affect the weld?icon-minus-redicon-plus-red

Travel speed is one of the main factors in how much energy goes into each length of weld. Heat input rises with current and voltage and falls as travel speed increases, so slower travel puts in more heat per unit length and faster travel puts in less. That affects bead size, penetration and distortion.

The right speed is normally set by the welding procedure for the job, together with the process, joint and material, and not chosen by eye. A carriage holds the speed steady along the seam, which helps repeatability. Record the settings that gave a good result so they can be repeated.

Why use a carriage instead of welding by hand?icon-minus-redicon-plus-red

A carriage moves the torch at a steady, adjustable speed along the seam. By hand, travel speed tends to vary, especially as the operator tires, which can cause uneven beads. Makers and users report that constant speed is key to repeatable weld quality and less rework.

It also lets the operator concentrate on torch angle, stick-out and watching the arc. It is not right for every job, since joints that are short, awkward or highly irregular are often better done by hand, and the set-up still needs a competent operator who follows the procedure.
