Rapid Ref : GOV-100-PFD

Gullco Portable Flux Holding Oven 115 Volt, 100-400°F (38-205°C) Temperature, 400 Watts Complete with Thermostat, Thermometer & Shut-off Valve. 44Kg Capacity
GOV-100-PFD

£1469.00  EX VAT
 Buy in 3 easy interest free payments of £489.67† with
Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

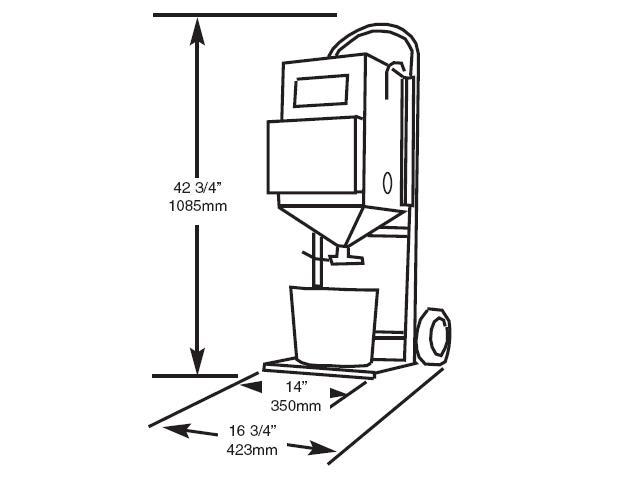

This portable 44Kg capacity Flux Holding Oven uses the same flux hopper as Model GOV 100 FH except it is supplied complete with a portable carrier, an 11Kg capacity flux bucket for transfer of the flux to the welding head. Flux bucket gravity feed from a positive lever-type valve at the base of the Hopper. The 100lb Hopper can be readily detached from its portable carrier and mounted directly above the welding head or on the welding manipulator. All for operation on 115v, Weighing 22Kg. Dimensions: 1085mm H x 423mm W.

Product Details

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure

Flux Ovens FAQs

Answers to common questions about holding ovens and heated hoppers for submerged arc welding flux.

Why does submerged arc flux have to be kept dry?icon-minus-redicon-plus-red

Flux that has taken up moisture releases hydrogen into the weld pool when it melts in the arc. Moisture in the flux or electrode coating is the principal source of hydrogen in flux-based welding. Hydrogen in the weld can lead to delayed cracking, especially in higher-strength steels, and damp flux is also a known cause of porosity.

Keeping flux dry from the packet to the weld is therefore part of controlling weld quality. The flux maker's data sheet and your welding procedure set out how dry it needs to be for the job.

Do I need an oven if my flux comes in sealed packaging?icon-minus-redicon-plus-red

Not always. Some suppliers now pack flux in airtight packaging, which is designed to let it be used straight from the pack at low hydrogen levels without baking first. Once the pack is opened, though, the flux is exposed to the air and that protection stops.

If you use the whole pack quickly, an oven may not be needed. If opened flux sits in the hopper or is put back into storage, a holding oven or heated hopper is a sensible way to keep it dry. Follow the flux maker's instructions and your welding procedure for how long opened flux may be left.

Can compressed air used for flux recovery affect the flux?icon-minus-redicon-plus-red

Yes. Flux recovery units driven by compressed air can carry moisture and oil into the recovered flux if the air is not dry and clean. Compressed air used with a flux recovery unit should be thoroughly dried.

A damp or oily recirculating flux can cause porosity, even if it was dry in the oven. Drain the air line and filters regularly, and follow the recovery unit maker's instructions. Keep the recycled flux separate from any contaminated or wet flux.

Can I reuse recovered flux, and should it go back in the oven?icon-minus-redicon-plus-red

Recovered flux can often be reused, but it needs care. Recirculating flux can break it down into dust, and too many fines can trap gas under the slag and cause surface defects, so the system should filter out detached slag and fine dust.

Many flux makers also recommend topping up recycled flux with new flux in a set proportion. Recovered flux that has been exposed to the air should be held in the oven or a heated hopper like fresh flux. Follow the flux maker's instructions on proportions and how often it may be recycled.
