    Rapid Ref : 301127-SET1

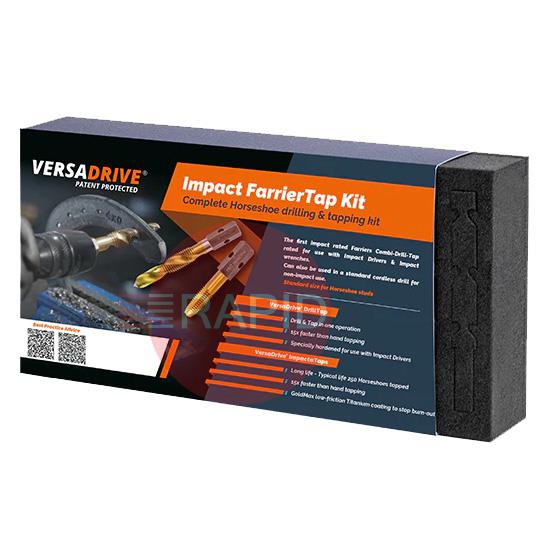

    HMT VersaDrive Farrier InsertFoam 3 Piece Set. Contains 3/8 - 16 BSW FarrierTap & Combi Drill Tap
    301127-SET1

    £123.90  EX VAT
    SSP Suggested Selling Price = £145.77  YOU SAVE £21.87
     Buy in 3 easy interest free payments of £41.30† with

    The first impact-rated Farriers Combi-Drill-Tap rated for use with Impact drivers & Impact wrenches. It can also be used in a standard cordless drill for non-impact use.

    • Standard Size for Horseshoe Studs
    • 15 times faster than hand tapping - Drill then Tap stud holes effortlessly, in seconds
    • Specially Hardened for use with an Impact Driver
    • Hi-tech premium TiN coating for smooth cutting and low heat buildup
    • Long tool life - Typical life 250 Horseshoes tapped
    • When using with an impact wrench or impact driver, the appropriate adaptor is required
    • For best results, use Speedlube cutting spray for lubrication

    Product Details

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    HMT Drill Taps FAQs

    Answers to common questions about combination drill-taps that drill and thread a hole in a single operation.

    What is a combination drill-tap and what does it do?icon-minus-redicon-plus-red

    A combination drill-tap is a single tool with a drill point at the front and a tap section behind it. It drills the hole, usually forms a small lead-in chamfer, and then cuts the thread, all in one pass without changing tools.

    Because the hole and the thread are cut by the same tool in the same setup, they stay in line with each other. The drill diameter is chosen to suit the thread size, so you do not need to look up a separate tap drill for each job. It is mainly used where a lot of threaded holes are needed quickly, such as fabrication and maintenance work.

    Why do I need cutting fluid when using a drill-tap?icon-minus-redicon-plus-red

    Tapping is a high-friction cut because the tap flanks are in contact with the work along the whole thread. Without proper lubrication, friction and heat build up, the tool wears faster and the thread finish suffers, and the risk of the tool seizing and breaking goes up.

    A purpose-made cutting or tapping fluid is usually the better choice, and tougher materials such as stainless and alloy steels generally need more lubrication than aluminium or cast iron. Apply it before you start and keep topping it up, especially in deeper holes where fluid struggles to reach the cutting edges.

    Why do drill-taps break and how can I avoid it?icon-minus-redicon-plus-red

    Most breakages come from the torque rising faster than the tool can take. Common causes are chips packing in the flutes, poor alignment, too little lubrication, running too fast, a worn tool, and the tap running out of depth in a blind hole.

    To reduce the risk, keep the tool square to the surface, use plenty of suitable fluid, let the tool cut at a steady controlled speed, and back out briefly to clear chips if it starts to bind. Use a torque-limiting clutch or setting where your equipment has one, and replace worn tools before they start to struggle. If a tool breaks repeatedly, check the setup and the lubrication before blaming the tool.

    How do I choose the right thread size and type?icon-minus-redicon-plus-red

    Choose the thread to match the bolt, stud or fitting that will go into it. That means matching both the diameter and the pitch, and also the thread form: metric, UNC (unified coarse inch) and BSW (Whitworth) are not interchangeable even when the sizes look close.

    Metric pitch is given in millimetres, while inch threads are given as threads per inch. A pitch gauge and calipers on the mating male thread will tell you what you have. A quick check is that a correct bolt should start by hand for several turns; if it does not, it is the wrong thread. Do not force a mismatched thread, as that risks cross-threading and a weak joint.
