    Rapid Ref : RPXX-HR

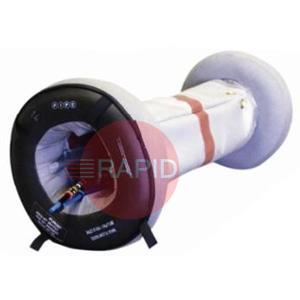

    Speedy Purge Heat Resistant System to 350º (500º for Short Periods), Sizes 8 - 80" (200 - 2031mm)
    RPXX-HR

    Select Option
    Prices From £406.80 ex VAT

    Designed for use when high temperatures are encountered in the welding process, such as pre- & post-heating. They are heat-resistant up to 350°C for up to 24 hours and 500°C for short periods.

    Mirroring the features of the standard range of inflatable purging systems, the heat-resistant range comes with a luminous positioning band for rapid centring and set-up. These systems can be in place throughout the pre-heating, welding and post-heat treatment cycles, allowing the weld to be purged continuously for up to 24 hours if necessary.

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Speedy Purge Systems FAQs

    Practical answers on choosing, setting up and looking after twin-dam inflatable purge bag systems, including heat-resistant versions.

    How do I choose the right size of bag system for my pipe?icon-minus-redicon-plus-red

    Bag systems are sold in size ranges, and the range refers to the inside diameter (bore) of the pipe, not just its nominal size. The wall thickness changes the bore: the inside diameter is the outside diameter minus twice the wall thickness, so heavier-wall pipe of the same nominal size has a smaller bore.

    Measure or calculate the actual bore and pick the system whose stated range covers it, ideally with the bore sitting comfortably inside the range rather than at the very edge. Your supplier's size chart and the maker's instructions are the final word.

    What does a heat-resistant purge system mean, and how hot can it go?icon-minus-redicon-plus-red

    A heat-resistant system uses bag material intended to cope with the heat that travels along the pipe from the weld, and sometimes from preheating. Ratings vary widely between products, and some are quoted as a continuous figure while others allow a higher temperature only for short periods.

    Always read the temperature rating for your particular system, note whether it is continuous or short-term, and keep the bags well back from the heat source. Heat is a recognised cause of inflatable dams swelling beyond their safe limits, so do not assume a bag will tolerate any weld.

    Can I rely on the bag seal to stop purge gas leaking?icon-minus-redicon-plus-red

    No. HSE guidance says the seal on both dams and bladders should not be relied on to prevent gas leakage. Proprietary dams and bladders often form a better seal than improvised ones, but they can still leak, and a leak can let argon or other inert purge gas collect in low or enclosed areas.

    Treat any purged pipe or fabrication as a potential hazard, ensure the purge gas has a safe place to go, and plan the work so nobody needs to go inside. Your risk assessment should cover this before you start.

    Is it safe to go inside a purged pipe to reposition or retrieve a bag?icon-minus-redicon-plus-red

    Not without proper controls. HSE guidance says entry to a confined space should only be considered when there is no alternative, normally only with at least one other person in attendance, and atmosphere testing should be done using a suitably calibrated oxygen meter without entering the space. Normal air contains about 20.8 per cent oxygen, and large variations are dangerous.

    The better approach is to avoid entry altogether: use a system with a pull cord or similar so it can be positioned and retrieved from the pipe end. Follow your risk assessment and confined space procedures.
