Rapid Ref : BMXL12

Steelbeast XL-12 Bevelling Machine with 30° & 45° Angle Kit, 380 / 415v 3ph BMXL12

Click here to see what's included

£5185.00 EX VAT

Buy in 3 easy interest free payments of £1728.33^† with

Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

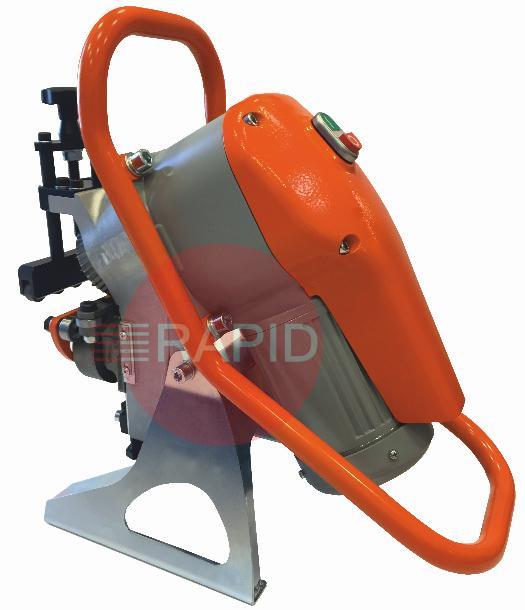

The XL12 is a lightweight double-sided auto-feed plate bevelling machine capable of producing a double-sided weld prep. Weighing only 30Kg, the XL12 is an ultra-light option to create welding-ready bevels on a linear plate of any shearable material including Iron, Steel (up to 60Kg/mm2) and Stainless.

Features

Produces a bevel edge ready for welding on any steel plate or component from 3 to 35mm thickness
A minimum width of 60mm and a minimum working length of 60mm
Can bevel angles 30°, 45°, 37.5°, 22.5° and 50° with additional kit
Incredibly silent operation
Can be used in a stationary position on a worktop, or automatically moves along the plate
Cutters available for mild and stainless steel bevelling
Easy setting of material thickness and cut with easily visible graduated scales for simple set-up
Lightweight, operator-friendly handles for transferring the machine around the workplace or positioning during long machining processes
High-quality and hard-performing working parts
Electronic operating system enclosed in a safety-conscious, heavy-duty control box

Product Details

Specification
Maximum Bevel Width: 12mm
Bevel Angle: 30, 45, 37.5, 22.5 and 50 degrees
Material Thickness: 3 - 35mm
Motor Power: 400W
Nominal Feed Rate: 1.8 metre/min
Weight: 30Kg
Dimensions: 470 x 294 x 523mm
