This tile is suitable for use with M.I.G./M.A.G. applications with solid, flux or metal-cored wires where minimal penetration is required but higher amperage is necessary because the small up-stands that are present in this tile will not burn away with amperages less than about 120 amps. Each tile is radiused to form the strip around a cylinder.
Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
12m - 40ft./ box

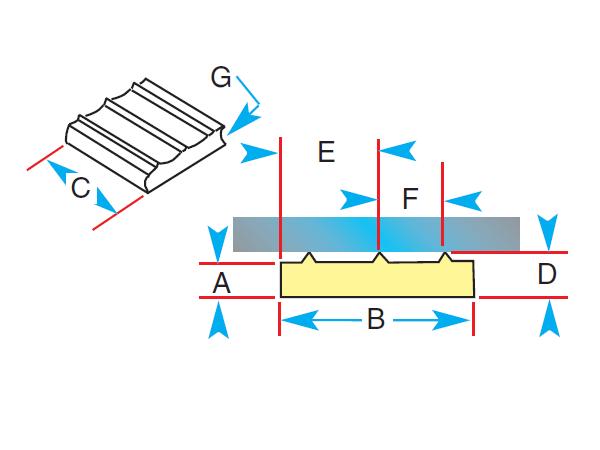

| Specifications |
| A |
3/16 in
4.8 mm |
| B |
1 in
25.4 mm |
| C |
1 in
25.4 mm |
| D |
15/64 in
6 mm |
| E |
1/2 in
12.7 mm |
| F |
11/32 in
8.7 mm |
| G |
3/16 in
4.8 mm |
