    Rapid Ref : SWH400  Mfr Ref : SWK4

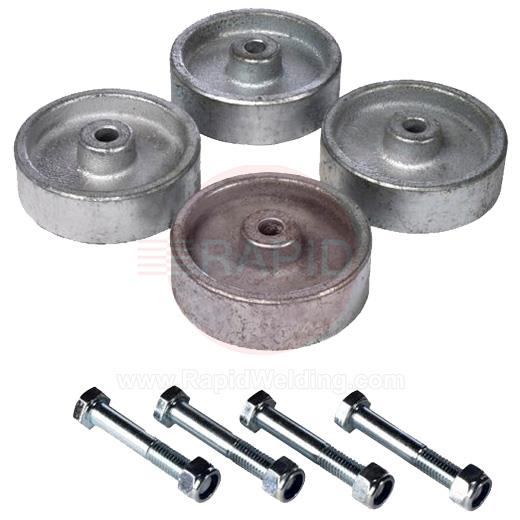

    4 Roller Steel Wheel Kit
    SWK4 SWH400

    £39.30  EX VAT
     Buy in 3 easy interest free payments of £13.10† with
    • Weight: 8kg
    • Load Capacity: 2,000kg

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Related Items

    Large Vee Head Jacks FAQs

    Heads, wheel kits, ball transfers and hold-downs that adapt a heavy-duty pipe jack stand to the job in hand.

    How do I set up a pipe jack stand so it stays stable?icon-minus-redicon-plus-red

    Use a solid, level surface that will carry the load, avoid slopes, dirt and gravel, and make sure every foot of the stand sits firmly on the floor. Support a pipe with at least two stands of the same height, spaced so the load is shared evenly, and think about the pipe length, diameter and weight when deciding how many you need.

    Set the height before the pipe goes on, never adjust or move a loaded stand, lower the pipe gently rather than dropping it, and centre it on the head. Keep hands out from between the pipe and the head, and never let anyone stand under a supported load. Follow the maker's instructions and your risk assessment.

    How do I know whether a head or wheel kit is within my stand's load rating?icon-minus-redicon-plus-red

    Never exceed the maker's rated load for the stand. Fitting a different head, wheel kit or castors can change what the stand can safely carry, so check the rating for every part and the stand's data plate or manual before use. In practice you work to the lowest figure marked on any part of the assembly.

    The rating normally assumes a load that is centred on the head and a stand on a level, solid base. Use the same head style on every stand supporting one pipe, and add another stand rather than pushing one to its limit. If you cannot find a figure for a part, ask the maker instead of guessing.

    Can welding current damage wheels and ball transfers?icon-minus-redicon-plus-red

    It can. Welding current that finds an unintended path back to the machine can pass through bearings, wheels and ball transfers, which can pit or damage them. HSE says stray currents can be comparable to the welding current, and are more likely when the return clamp is on rusty or dirty metal.

    So clamp the return lead directly to the workpiece, on clean bare metal and as close to the weld as possible, rather than relying on the stand, rails or other pipework to carry current. Keep the connection tight and clean, and inspect wheels and balls for pitting or roughness. Follow your welding equipment instructions and risk assessment.

    What are ball transfer heads for, and when should I avoid them?icon-minus-redicon-plus-red

    A ball transfer unit is a housing holding a load ball on smaller bearing balls, so the load ball turns in any direction. On a pipe stand that lets a pipe slide or turn freely, which is handy for moving a length through or lining up a joint before it is fixed.

    Because the pipe moves so easily they are a poor choice for tacking or any time it must stay steady, so move it into a V head or use a hold-down once it is placed. Felt rings help keep dirt out of the housing, so keep the units clean. Check the maker's data for the rated load and any limit on how the unit may be mounted.
