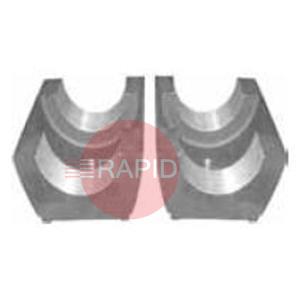

    Aluminium Clamping Shell for GF 4 and RA 41 Plus, Pipe-OD 88.9mm
    790046363

    £360.00  EX VAT
     Buy in 3 easy interest free payments of £120.00† with

    RA Clamping Parts FAQs

    Answers to common questions about clamping shells and jaws for orbital tube cutting machines, from sizing to care.

    Why are shell sizes quoted as tube outside diameter, and what about pipe sizes?icon-minus-redicon-plus-red

    Tube is sized by its actual outside diameter, with wall thickness stated separately, so a shell can be matched directly to a measurement. Pipe is often described by a nominal size, which is a label and is not the true outside diameter. For example, a pipe called 2 inch nominal has an outside diameter noticeably larger than 2 inches.

    So measure the real outside diameter rather than relying on a nominal name. Inch tube sizes also convert to odd-looking metric figures (1 inch is 25.4 mm), which is why shell sizes are often quoted that way.

    Can one clamping shell cope with a range of tube sizes?icon-minus-redicon-plus-red

    Usually not. Fixed shells are made for one outside diameter, so each tube size needs its own pair. Some machines instead clamp with adjustable jaws that cover a stated opening range, and some makers supply extra jaws to widen that range.

    Which arrangement applies depends on the machine, so check the manual for the capacity of your frame and the shell or jaw sets it accepts. Forcing a tube into a shell that is slightly too small, or relying on a shell that is too large, is likely to give an unsquare cut or mark the tube.

    What is the difference between clamping shells and clamping jaws?icon-minus-redicon-plus-red

    Shells are half-round pieces that wrap the tube and are made for a specific tube diameter. Jaws are separate contact pieces, often several spaced around the tube, that grip at points and can be fitted in different positions or swapped for different jaw types.

    Some makers fit special jaws for particular tube types, for example jaws made from stainless steel for stainless work. Look at how your machine clamps, and use the part type the manual lists for it.

    Should I use aluminium or stainless steel clamping parts on stainless tube?icon-minus-redicon-plus-red

    Follow the machine maker's instructions, as the right material depends on the machine. Some machines are supplied with hardened aluminium jaws, while some makers specifically fit stainless steel jaws and state that this avoids contaminating stainless tube.

    Where stainless tube must stay clean, for example for hygienic or high-purity systems, the general advice is to keep it away from tooling that has been used on carbon steel, because particles of iron left on the surface can lead to corrosion. If in doubt, ask the maker which jaw material suits the tube and the end use.
