    Rapid Ref : 7901860X2-K2

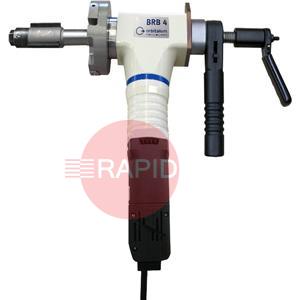

    BRB 4 Boiler Pipe Preparation Machine, Kit 2, with "NC" clamp, Pipe ID clamping range: 35.0 - 64.0mm
    7901860X2-K2

    Select Option
    Prices From £4545.00 ex VAT

    Lightweight and robust Boiler Prep Machine. Counterboring and axial turning of pipes made from high-alloy steel (stainless steel), low-alloy and carbon steel with the unique tool system QTC®. Designed for pipe end preparations and boiler pipe applications.

    The BRB machines are available in the following drive versions:

    Electric:
    230 V, 50/60 Hz EU or 120 V, 50/60 Hz EU/US.
    Electric drive with single-phase AC motor. Protection class II (double insulated). Built-in electronic variable cutting speed.

    Pneumatic:
    Pneumatic power drive. The manufacturer’s warranty can only be given when using the original Orbitalum mobile air unit, Code 790 093 060 (click here to view).

    Pneumatic/Auto:
    Pneumatic multi-disc or with an additional pneumatic clamping system.
    When installing or repairing boiler pipes, time is of the essence - the new pneumatic clamping system greatly reduces the time to clamp and release the machine, improving efficiency. The machine centres itself on the inside diameter of the pipe and then clamps automatically by using the toggle switch, likewise, the toggle switch releases the clamping after the machining operation. This is why the BRB with automatic pneumatic clamping is ideal for continuous production e.g. boiler and heat exchanger applications.

    Product Details

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Related Items

    BRB 2 & BRB 4 "NC" Clamp FAQs

    Practical answers on choosing, fitting and using a portable tube end preparation machine with an internal wedge clamp.

    Why prepare tube ends before welding?icon-minus-redicon-plus-red

    A prepared end gives the welder access to the whole joint, so the weld can fuse properly right through the thickness. The risk of defects rises as the bevel angle or the root gap is reduced, and the root pass is usually the most difficult part of the joint.

    A clean, square, accurately bevelled end also makes fit-up easier and more repeatable from one joint to the next. The exact preparation (angle, root face, gap) should come from your welding procedure or the relevant code, not from the machine.

    What bevel angle and root face should I set?icon-minus-redicon-plus-red

    There is no single right answer. The angle, the root face (land) and the root gap depend on the material, the wall thickness, the welding process and the welding procedure or code you are working to. The included angle is set by the need for correct torch or electrode access, and too narrow an angle or gap increases the risk of defects, while an excessive gap can cause melt-through.

    Take the figures from your welding procedure specification, set the cutter accordingly, and check the first prepared end against the drawing before working through a batch.

    How do I know when a cutter insert needs changing?icon-minus-redicon-plus-red

    Trade guidance on cutting tools lists the usual warning signs: a poorer surface finish, rising cutting force, vibration or squealing, parts drifting out of size, visible wear or chipping, changed chip shape and tool life that is shorter than normal. The same guidance warns that waiting for a tool to break leads to scrap and damage to the holder.

    Changing too late risks a spoiled tube end or a broken cutter, while changing too early wastes cutting edge that is still good. Turn or replace the insert as the manual describes, clean the seat first, and fit it with the screw tightened as the maker specifies.

    How often should the machine be checked and serviced?icon-minus-redicon-plus-red

    The HSE says inspection frequency depends on the type of work equipment, how it is used and the conditions it is exposed to, and should be set through risk assessment taking full account of the manufacturer's recommendations. It also says inspection does not replace servicing, which keeps the equipment in efficient working order and good repair.

    In practice that means a quick look before each use (guards, cutter, clamp, air hose or cable) and a fuller check at the intervals in the manual. Take any machine with a damaged guard, cable or hose out of use until it is repaired.
