    Rapid Ref : 2LanthanatedTungsten

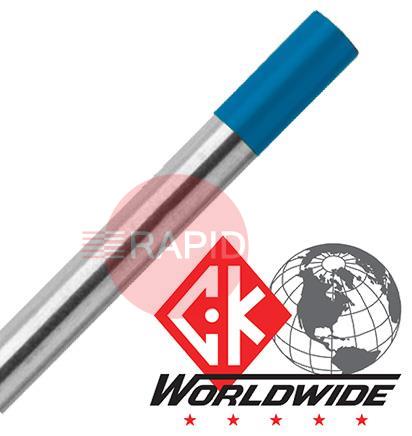

    CK 2% Lanthanated (Blue) Tungsten Electrode, 175mm (7") Long
    2LanthanatedTungsten

    Select Option
    Prices From £0.52 ex VAT

    Product Details




    2% LANTHANATED (BLUE) EWLa-2/WL20

    Principal Oxide: 1.8-2.2% Lanthanum Oxide

    NON-RADIOACTIVE. Best general-purpose electrode for both Alternating Current (A/C) or Direct Current (D/C) using inverter or transformer based constant current power sources. Good for low-alloyed steels, non-corroding steels, aluminium alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Good arc starts and stability, medium to high amperage range, low erosion rate.

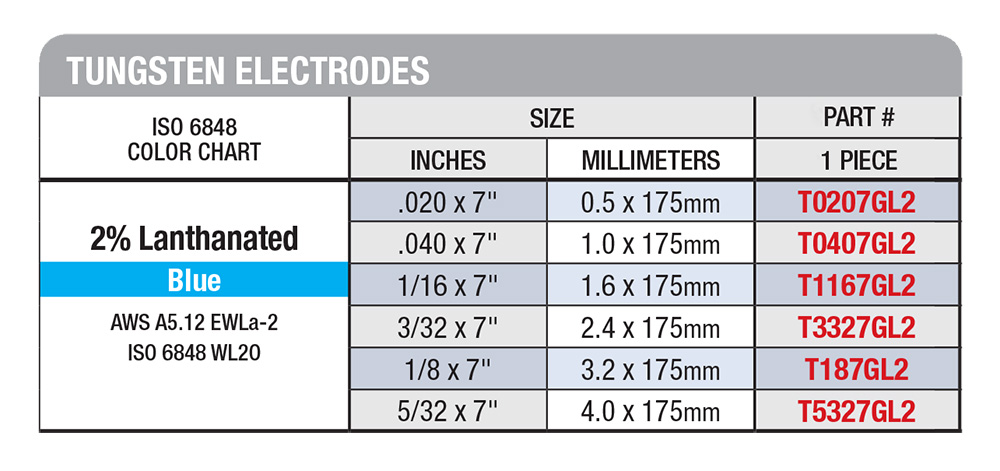

    CK-TUNGSTEN-ELECTRODE-BLUE-DESCRIPTION-IMAGE

    Brochures & Manuals

    Tungsten Electrodes FAQs

    Straight answers to the questions people ask most when choosing and using tungsten electrodes for TIG welding.

    What do the colours on tungsten electrodes mean?icon-minus-redicon-plus-red

    The coloured band on the end of an electrode shows the type. Common examples are red for thoriated, grey for ceriated, white for zirconiated and green for pure tungsten. Lanthanated electrodes use several colours depending on the amount of oxide, and some other blends have colours that vary between makers.

    Colour codes are widely used, but always check the packaging, since a maker's colour may differ from what you expect. The band is often on the end that gets cut or ground off, so mark or keep track of the type once it has gone.

    Why do people avoid thoriated tungsten?icon-minus-redicon-plus-red

    Thoriated tungsten contains a mildly radioactive oxide. The electrode itself is normally low risk to handle, and the main concern is the dust from grinding, which can be breathed in or swallowed. For that reason many workshops now prefer non-radioactive types that perform similarly on DC.

    If you do use thoriated tungsten, follow the HSE guidance, the maker's instructions and your own risk assessment, particularly on grinding, dust control, storage and disposal.

    What is the difference between pure and alloyed tungsten?icon-minus-redicon-plus-red

    Pure tungsten has no oxide added and is the simplest type. Alloyed tungstens have small amounts of an oxide, such as thoria, ceria, lanthana or zirconia, which makes them easier to start, improves arc stability and lets them carry more current for their size.

    Pure tungsten is mostly used for AC welding on aluminium, though modern machines and alloyed electrodes have largely taken over. For most work an alloyed tungsten gives a longer life and easier starts.

    What length of tungsten should I use?icon-minus-redicon-plus-red

    Standard electrodes come in set lengths and most general-purpose torches take the common length. Shorter lengths are used in some small and compact torches, and can also be handy where space is tight.

    Check the length your torch and back cap can hold. As the electrode wears down with regrinding, you will eventually be left with a short stub, which should be replaced when it becomes too short to grip properly.
