    Rapid Ref : 505020

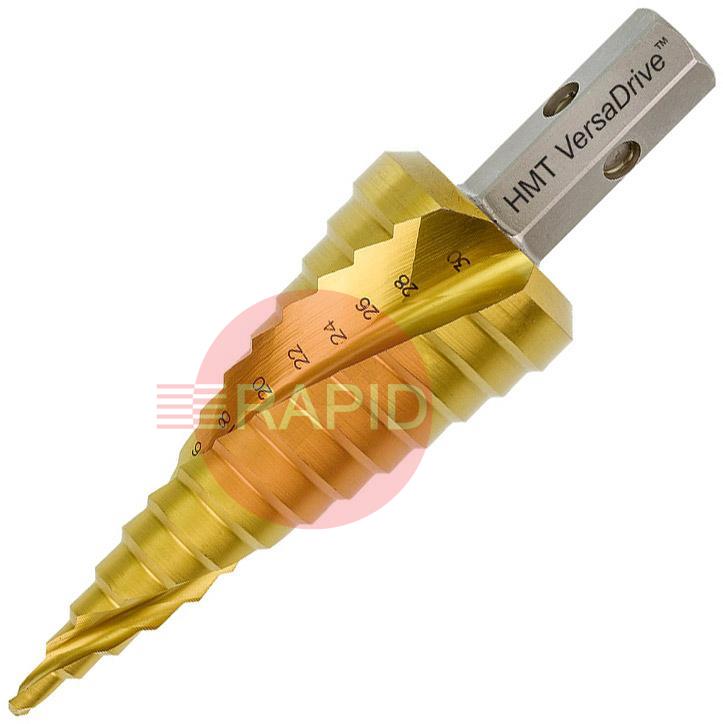

    HMT VersaDrive Step Drill - Metric Size
    505020

    Select Option
    Prices From £53.68 ex VAT

    THE FIRST STEP DRILL OPTIMISED FOR USE WITH IMPACT WRENCHES.

    Spiral flute design for fast, smooth drilling with a rotary drill or impact wrench. VersaDrive Step Drills have a reinforced hex shank with increased strength for greater feed rates. The non-slip shank design provides a secure hold with all standard drill chucks, preventing slippage. VersaDrive Step Drill Bits have standard heavy-duty, 135-degree split point geometry, providing extremely accurate drill points starting on a wide range of materials.  Fast, smooth drilling with minimal kickback, specially hardened for impact wrench use.

    • Precision ground flutes with deep web design for easy chip clearance
    • 135-degree SPLIT point angle for easy starting and high accuracy
    • 8% Cobalt for long life and endurance in structural steel and hard metals
    • Goldmax low-friction titanium coating to stop heat burn-out
    • High strength, non-slip shank design

    Product Details

    Brochures & Manuals

    HMT Step Drills FAQs

    Answers to common questions about choosing and using step drills for clean, accurate holes in thin sheet material.

    How does a step drill compare with a twist drill on sheet metal?icon-minus-redicon-plus-red

    On thin sheet, a twist drill can grab, wander and leave a rough or slightly out-of-round hole with a burr around the edge. A step drill cuts one diameter at a time, so the hole is usually round and cylindrical, and each step tends to clean up the edge left by the step before it.

    A twist drill is still the better choice for thicker material, for deep holes and for sizes that fall between the steps. Choose according to the thickness and material you drill most often.

    How thick a material can a step drill cut?icon-minus-redicon-plus-red

    Step drills are designed for thin material, and makers state a maximum thickness for each bit or set. The figure varies widely: general-purpose bits are often rated for only a few millimetres of sheet, and some cobalt bits are rated for sheet steel gauges around 2 to 3.5 mm, with stainless steel often rated lower.

    The limit depends on the bit, the material and the power of the drill. Thicker plate is better drilled with a twist drill, often starting with a small pilot hole. Always check the limit stated by the maker for your particular bit.

    What speed and pressure should I use with a step drill?icon-minus-redicon-plus-red

    Speed depends on the material. Makers and tool guides generally advise a low speed for stainless steel and other hard metals, and a higher speed for mild steel, with plastics usually run faster but watched for heat. Slow down as the bit reaches the larger steps. Use light, steady pressure and let the cutting edges do the work; excessive force overheats the bit and distorts the hole.

    A variable-speed drill makes this much easier. Exact speeds differ between makers and materials, so use the figures supplied with the bit as your starting point.

    Should I use cutting fluid when drilling with a step drill?icon-minus-redicon-plus-red

    When drilling metal, cutting fluid is normally recommended, and makers specifically advise it for stainless steel. It keeps the bit cooler, reduces wear, helps flush away chips and generally gives a cleaner cut and longer bit life. Back the bit out of the hole now and then to clear swarf and let it cool.

    Aluminium can clog the cutting edges, so a wax-based lubricant is often suggested for it. Choose a fluid that is suitable for the material you are drilling.
