    Rapid Ref : 603070

    HMT VersaDrive DrillSinks
    603070

    Select Option
    Prices From £50.92 ex VAT

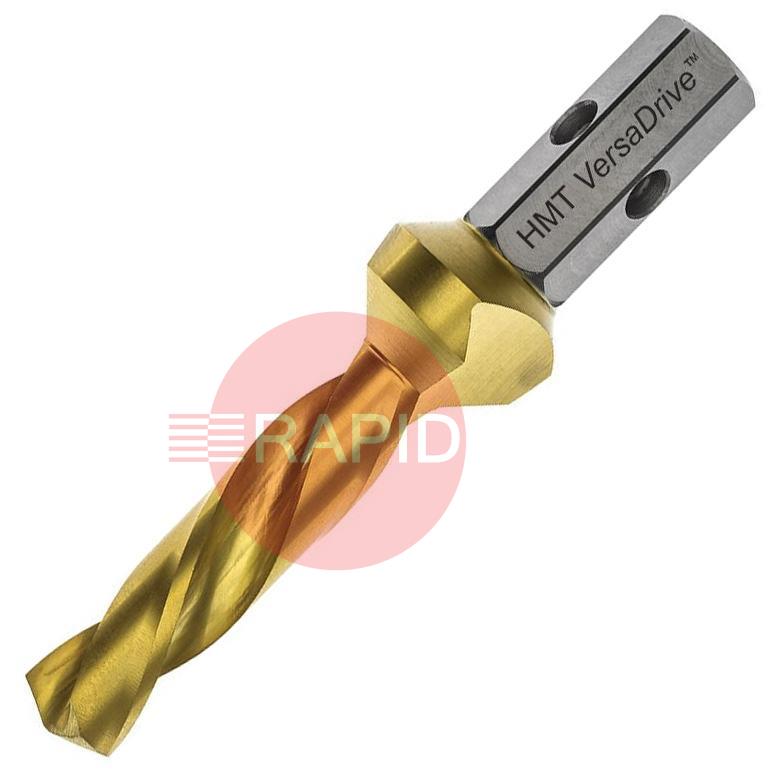

    The HMT VersaDrive Drillsink is an innovative combined drilling & countersinking tool to save metalworkers time & increase hole accuracy by drilling & then countersinking fixing holes in one operation. This combination tool provides perfect countersinking accuracy by locating the drilled hole in perfect alignment with the countersink. This helps prevent tool chatter and blunting commonly found with standard countersinks. VersaDrive™ DrillSinks have a patented non-slip Hex shank suitable for use in any standard 1/2” drill chuck for cordless or pistol drills or used with a VersaDrive Rapid Lock adaptor for use in a wide range of power tools such as Magnetic Drills.

    Features

    • Suits M6 set screws (DIN 74)
    • Drill & Countersink in one easy operation
    • Perfect concentricity creates the perfect Countersink
    • Ground flutes for high accuracy and long life
    • High-Grade tool steel
    • High strength, non-slip shank design
    • GoldMax low-friction titanium coating to stop burn-out
    • Prevents the chattering of standard countersinks

    Product Details

    HMT Countersinks FAQs

    Answers to common questions about choosing and using countersinks for magnetic drills, drill presses and power drills.

    How do I get the screw heads to sit flush and not stand proud or sink too far?icon-minus-redicon-plus-red

    Depth controls how far the head sits. Too shallow and the head stands proud; too deep and it sinks below the surface and loses bearing area. Cut a little at a time and test-fit a screw, rather than cutting to full depth in one go.

    A depth stop, or a fixed depth setting on the machine, helps keep every hole in a pattern the same. Because material hardness and thickness vary, trial the setting on a scrap piece first, and re-check the first holes of each batch.

    What is the difference between a countersink and a counterbore?icon-minus-redicon-plus-red

    A countersink cuts a cone-shaped recess that matches a countersunk (flat head) screw, so the head sits flush. A counterbore cuts a cylindrical recess with a flat bottom, which is what a socket head cap screw or a bolt head with a washer needs.

    Countersinks are also used to chamfer or deburr the edge of a drilled or tapped hole, which gives a lead-in for a tap or screw and removes sharp edges. If you only need to break an edge, a countersink is the usual tool; if the fastener has a flat-underside head that must be recessed, you need a counterbore.

    What safety precautions should I take with loose clothing, hair and gloves when countersinking?icon-minus-redicon-plus-red

    Countersinking uses rotating tools, so entanglement is a real risk. The HSE advises avoiding loose or baggy clothing, tying back or covering long hair, and avoiding jewellery, including rings, when operating engineering machinery. It also says many serious workshop accidents could be avoided if gloves were not worn near rotating machinery such as drills.

    Follow the machine maker's instructions and your own risk assessment. Hold or clamp the work securely so it cannot spin with the cutter, and keep hands clear of the rotating tool.

    What is a Weldon shank, and how should I fit the countersink in a magnetic drill?icon-minus-redicon-plus-red

    A Weldon shank is a round shank with one or more flats machined on it. A screw in the machine's holder or arbor bears on the flat, which stops the tool from twisting or pulling out under load.

    Make sure the shank size and flat style match the holder, that the shank is fully inserted, and that the screw is tightened onto the flat before each use. Some machines with quick-change fittings need an adapter for standard Weldon shanks, so check before buying. Never use a countersink in a holder it does not fit, and always follow the magnetic drill maker's manual for fitting, clamping and the speed range.
