Gas lens bodies, collets and cups for a TIG torch: how the parts fit together, how to pick the right ones and when to replace them.
A gas lens replaces the standard collet body at the front of a TIG torch. A gas lens fitted within the torch nozzle gives laminar gas flow, which improves gas protection for sensitive operations such as vertical, corner and edge joints and curved surfaces. A standard body pushes shielding gas out through a few small holes, which can leave the flow turbulent, whereas a gas lens passes the gas through fine mesh screens first, so it leaves as a smoother, more even column around the tungsten.The collet is a separate part and still grips the tungsten, so you keep using one with a gas lens. The smoother flow also usually allows a longer tungsten stick-out.
There is no single setting. Some trainers say a gas lens can give the same cover at a lower flow than a standard body, while others advise raising flow with larger lens cups, so treat any rule of thumb as a starting point only. Follow the torch maker's and gas supplier's guidance and test on scrap.Too much flow does harm. Too high a gas flow rate, leaks in the gas line, draughts and excessive turbulence are among the frequent causes of porosity, and even a small amount of air entrained in the shield can cause porosity. If a weld looks dull or porous, check for leaks at the hose and torch before changing parts.
Switch the machine off and isolate it, close the gas supply, and let the torch cool before you change parts. The tungsten, gas lens and cup stay hot for some time, and hand-held arc welding carries a risk of electric shock and electrical burns, so do not rely on gloves in place of isolating.Ceramic parts can crack, so handle them carefully and wear gloves and eye protection if there is a risk of chipping. Use only parts matched to your torch. If you can smell ozone while TIG welding, fume may not be well controlled, so review your controls and consider respiratory protection. Follow your risk assessment and ventilation controls.

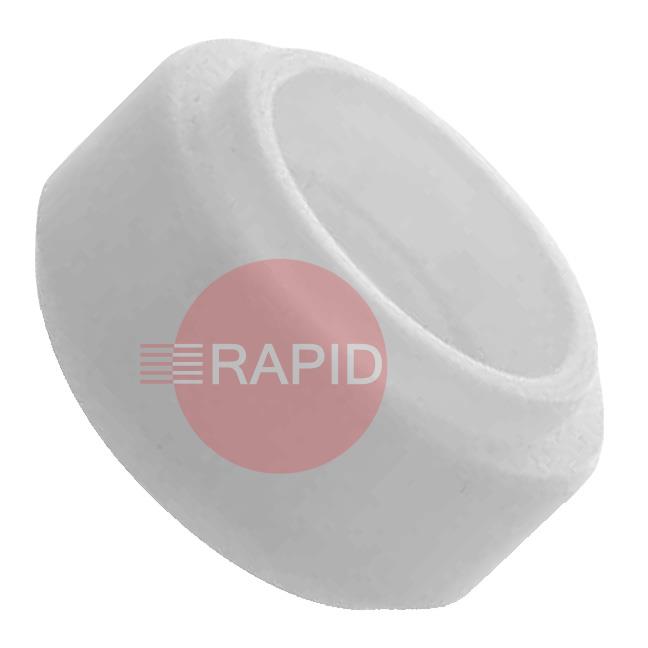

Start with three facts: the torch series (from the data plate, manual or markings), the tungsten diameter you use, and whether the torch is air or water cooled. The collet and gas lens body must both match the tungsten diameter, and the body must match the torch head.Then pick a cup that suits the gas lens and the access you need, for example standard or long. Compare the old part with the replacement, since torch families can look alike but differ in thread and length. If anything is unclear, check the parts list in your manual or ask our team to help you choose.
