CK 8 Series Gas Lens Parts FAQs
Gas lens bodies, collets and cups for a TIG torch: how the parts fit together, how to pick the right ones and when to replace them.
What is a gas lens and how does it differ from a standard collet body?

A gas lens replaces the standard collet body at the front of a TIG torch. A gas lens fitted within the torch nozzle gives laminar gas flow, which improves gas protection for sensitive operations such as vertical, corner and edge joints and curved surfaces. A standard body pushes shielding gas out through a few small holes, which can leave the flow turbulent, whereas a gas lens passes the gas through fine mesh screens first, so it leaves as a smoother, more even column around the tungsten.
The collet is a separate part and still grips the tungsten, so you keep using one with a gas lens. The smoother flow also usually allows a longer tungsten stick-out.
How do cup numbers work and how do I choose a size?

Cup numbers usually refer to the inside diameter in sixteenths of an inch, so a higher number means a wider opening. A wider cup covers a larger area and tolerates a longer stick-out, but it is bulkier and can be awkward in tight joints. A narrower cup gets into corners but covers less.
Nozzle selection depends mainly on the electrode diameter and on access to the joint. In practice, choose the largest cup that still gives you access. Numbering is a convention, so dimensions can differ slightly between makes. Check that the cup is designed for gas lens use and fits your gas lens body.
What safety points apply when changing gas lens parts?

Switch the machine off and isolate it, close the gas supply, and let the torch cool before you change parts. The tungsten, gas lens and cup stay hot for some time, and hand-held arc welding carries a risk of electric shock and electrical burns, so do not rely on gloves in place of isolating.
Ceramic parts can crack, so handle them carefully and wear gloves and eye protection if there is a risk of chipping. Use only parts matched to your torch. If you can smell ozone while TIG welding, fume may not be well controlled, so review your controls and consider respiratory protection. Follow your risk assessment and ventilation controls.
Which parts make up a gas lens set-up and which wear out first?

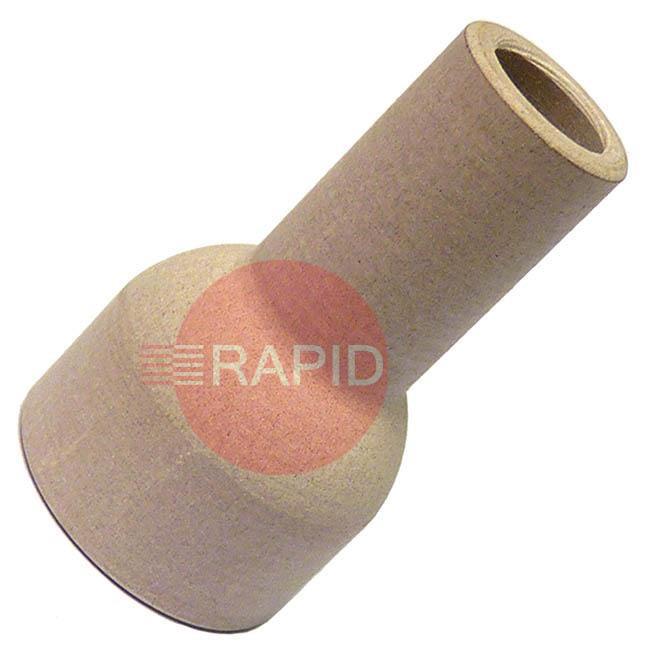

A typical set-up is the gas lens body, a collet to suit the tungsten, a cup (nozzle) and sometimes an insulating or heat-protecting part and seals. Some kits also add a back cap or stubby parts for tight access, so check the parts diagram for your torch.
The cup and the outer mesh screen of the gas lens take the most heat and spatter, and collets wear where they grip the tungsten. O-rings can harden and flatten with heat and repeated tightening. Look over these parts whenever you change the tungsten, and replace anything cracked, deformed or clogged rather than hoping it will do.
