CK 8 Series Standard Parts FAQs
Plain answers on identifying, choosing and looking after the standard collets, collet bodies, cups and heat shields for a compact TIG torch.

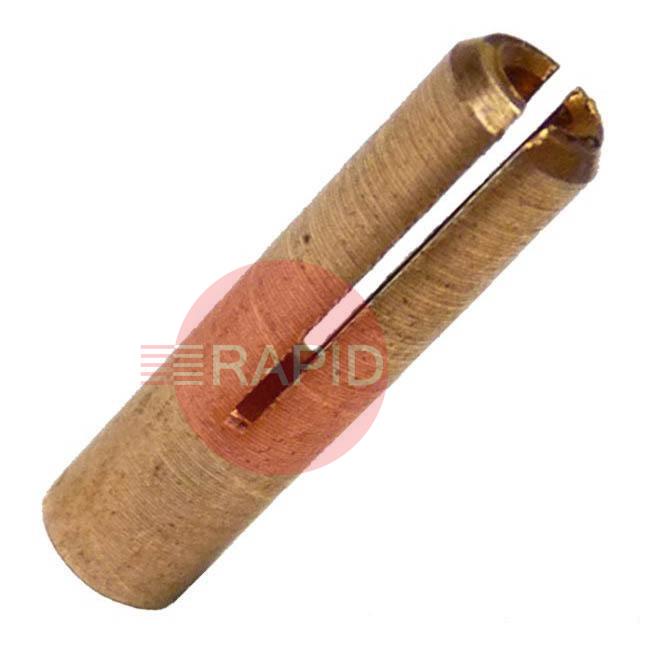

Do the collet and collet body need to match the tungsten diameter?

Yes. The collet grips the electrode and helps carry the welding current into it, so it must be the right size for the tungsten. Collets and collet bodies are normally listed by electrode diameter, and the cup size should suit them too.
A loose or worn collet gives poor contact, which can mean a hot torch head, an erratic arc or a tungsten that slips. When you change tungsten diameter, change both the collet and the collet body if they are listed by size. Check the markings or the manual rather than judging by eye. Keep spares of each size you use, and fit and tighten the parts as the torch manual describes, without forcing them.
How do I avoid contaminating the tungsten?

Contamination usually happens when the tungsten touches the work or the filler rod, or when air reaches the hot electrode. If the electrode sticks to the workpiece it can leave a tungsten inclusion in the weld, and a lift-arc start, which makes the short circuit at a very low current, reduces the risk.
Other common causes are dipping into the puddle, too much electrode extension and draughts or poor shielding. If the tip is contaminated, remove the affected portion and prepare it again. Post-flow lets the tip cool under gas; the right time depends on the machine, current and metal, so follow your manual. Check for gas leaks, and inspect cracked cups or worn parts that could let air in.
Why does a compact torch need care on long runs?

Air-cooled torches rely on the shielding gas and surrounding air to carry heat away. Air-cooled TIG torches get too hot during lengthy welding runs, so the welder has to let the torch cool or swap to a water-cooled one.
A compact torch head is made for lighter work. Stay within the current rating on the torch data plate or in the manual, and give it rest periods on heavy jobs. Excess heat can soften a collet so that it stops gripping the tungsten, and it also wears the electrode and other parts faster. If you often work at the top of the rating, consider a larger or water-cooled torch.
What safety points apply when changing these parts?

Isolate the welding power source before you change the tungsten, collet, cup or any other torch part, and follow the equipment maker's instructions. The head and cup can stay hot for some time and can burn you, so let them cool first.
Welding radiation can burn the front of the eye (arc eye), with pain and redness a few hours afterwards, and skin can be reddened like sunburn. Ozone is a risk when TIG welding stainless steel and aluminium. Your risk assessment should cover eye and skin protection and local exhaust ventilation or respiratory protection. Replace cracked cups rather than continuing to use them.
