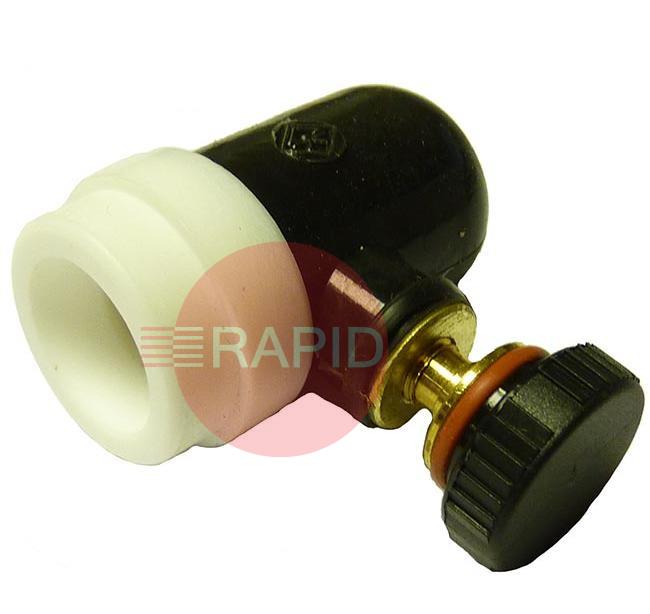

Answers to common questions about variable-angle, locking air-cooled TIG torches, their interchangeable heads and consumables.
Check the whole torch before each use: head, body, handle, cable, connectors and consumables. Look for cracked or loose cups, a burnt or deformed collet or collet body, damaged cable insulation or protective hose, sharp bends in the cable, and connectors that are not clean and tight.TWI notes that the welder is responsible for checking the cable and coupling devices daily for damage, and that external connections should be clean and tight and checked after every reconnection. Replace a damaged cable rather than repairing it temporarily, and isolate the machine before changing parts.
Start with the tungsten diameter. The collet is sized to the tungsten, and TWI notes that nozzle selection depends mainly on the electrode diameter and on how accessible the joint is. Makers list collets and collet bodies by tungsten size, so match both to your electrode.A standard collet body with an alumina cup suits general work. A gas lens body gives smoother, laminar gas flow, which TWI says improves gas protection on corner, edge and curved joints. Short and long cups are made for tight access and deep recesses. Always use parts made for the head series marked on your torch.
Alumina (ceramic) cups are the sturdier general-purpose choice. A distributor's technical guide describes them as more durable than glass, while glass nozzles are clear but break more easily. A clear glass cup lets you see the tungsten and the weld pool, which is useful on fine work and in confined spaces.Whichever you pick, match it to the head series and to the collet body or gas lens in use, since cups are made in sizes for particular heads. Larger-diameter cups give wider gas cover and long cups reach into recesses. Replace any cup that is chipped or cracked.
Check three things: how the power cable connects to the machine, how the gas is supplied, and the fitting sizes. Makers list torches with a standard cable, where gas goes in by a separate hose, and a gas-through cable, where gas passes through the machine connector. Torches may also have a valve in the handle.Power connectors come in more than one size, and thread sizes differ between makers and regions, so read the markings on the torch and your machine manual rather than assuming. If you need an adaptor, make sure it suits the connectors at both ends and the current you will use.
