    Rapid Ref : CK-8CG2

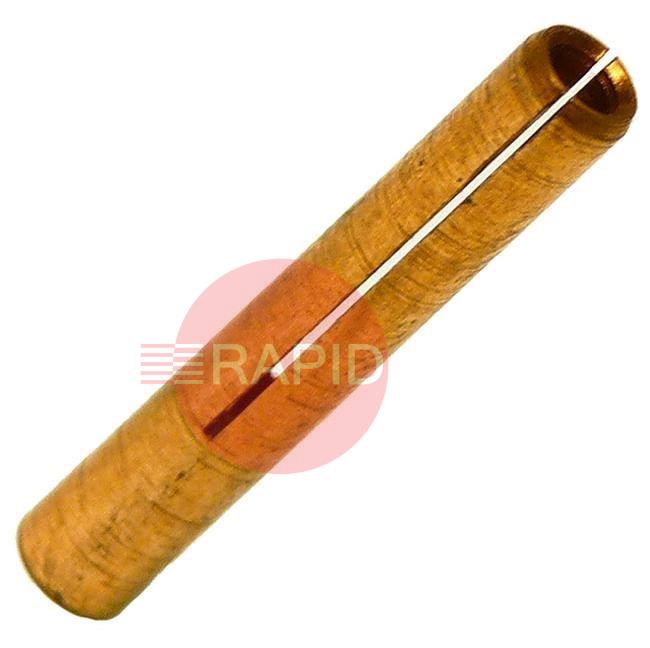

    CK Gas Lens Collet 8 Series
    CK-8CG2

    Select Option
    Prices From £2.38 ex VAT

    CK 8 Series Gas Lens Parts FAQs

    Gas lens bodies, collets and cups for a TIG torch: how the parts fit together, how to pick the right ones and when to replace them.

    Do I need to change my gas flow when I fit a gas lens?icon-minus-redicon-plus-red

    There is no single setting. Some trainers say a gas lens can give the same cover at a lower flow than a standard body, while others advise raising flow with larger lens cups, so treat any rule of thumb as a starting point only. Follow the torch maker's and gas supplier's guidance and test on scrap.

    Too much flow does harm. Too high a gas flow rate, leaks in the gas line, draughts and excessive turbulence are among the frequent causes of porosity, and even a small amount of air entrained in the shield can cause porosity. If a weld looks dull or porous, check for leaks at the hose and torch before changing parts.

    What safety points apply when changing gas lens parts?icon-minus-redicon-plus-red

    Switch the machine off and isolate it, close the gas supply, and let the torch cool before you change parts. The tungsten, gas lens and cup stay hot for some time, and hand-held arc welding carries a risk of electric shock and electrical burns, so do not rely on gloves in place of isolating.

    Ceramic parts can crack, so handle them carefully and wear gloves and eye protection if there is a risk of chipping. Use only parts matched to your torch. If you can smell ozone while TIG welding, fume may not be well controlled, so review your controls and consider respiratory protection. Follow your risk assessment and ventilation controls.

    Which parts make up a gas lens set-up and which wear out first?icon-minus-redicon-plus-red

    A typical set-up is the gas lens body, a collet to suit the tungsten, a cup (nozzle) and sometimes an insulating or heat-protecting part and seals. Some kits also add a back cap or stubby parts for tight access, so check the parts diagram for your torch.

    The cup and the outer mesh screen of the gas lens take the most heat and spatter, and collets wear where they grip the tungsten. O-rings can harden and flatten with heat and repeated tightening. Look over these parts whenever you change the tungsten, and replace anything cracked, deformed or clogged rather than hoping it will do.

    How do I work out which gas lens, collet and cup I need for my torch?icon-minus-redicon-plus-red

    Start with three facts: the torch series (from the data plate, manual or markings), the tungsten diameter you use, and whether the torch is air or water cooled. The collet and gas lens body must both match the tungsten diameter, and the body must match the torch head.

    Then pick a cup that suits the gas lens and the access you need, for example standard or long. Compare the old part with the replacement, since torch families can look alike but differ in thread and length. If anything is unclear, check the parts list in your manual or ask our team to help you choose.
