    Rapid Ref : CK-3AG6LX

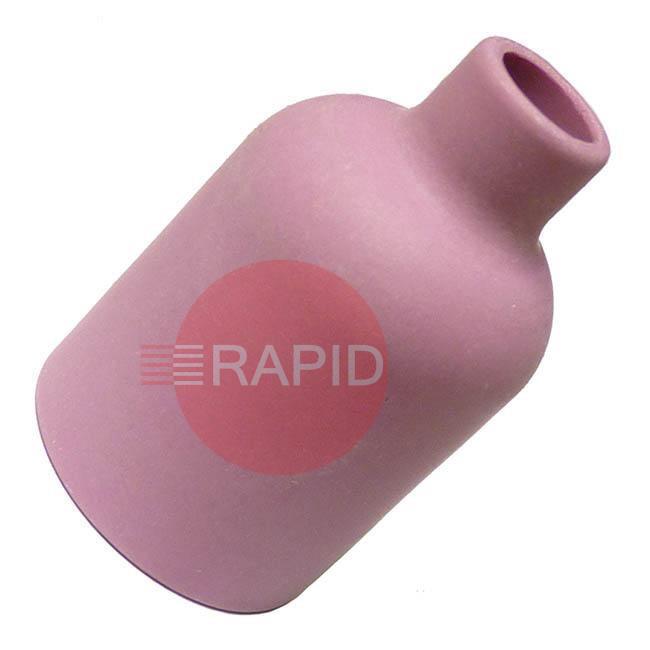

    CK Large Diameter Alumina Gas Cup - 48mm Long
    CK-3AG6LX

    Select Option
    Prices From £3.00 ex VAT

    Cup Alumina.

    CK TL26 Large Diameter Gas Saver Spares FAQs

    Large diameter gas saver collets, collet bodies, gas lens bodies, heat shields and cups for a heavier-duty TIG torch.

    When is it worth choosing large diameter parts?icon-minus-redicon-plus-red

    Large diameter parts are usually chosen where a wider gas shield and longer tungsten stickout are needed, for example on joints where air contamination matters such as stainless steel. Some welders also like to rest or walk the cup along the work. For reactive metals such as titanium the procedure may call for additional shielding, so follow your welding procedure rather than relying on the cup alone.

    The trade-off is bulk: a bigger cup can block access to tight joints and can hide more of the joint from view than a slimmer one. If your work is mostly easy-access mild steel, a standard or shorter set may be enough. The material, joint and your procedure should guide the choice.

    Should I choose a long alumina cup or a borosilicate glass cup for large diameter work?icon-minus-redicon-plus-red

    A torch maker's manual says alumina cups suit general-purpose work and where impact resistance is needed, and that a ceramic (lava) type is used when reflected heat is high. Alumina is opaque. Clear borosilicate glass cups let you see the tungsten and the weld path, which helps with setting up and in corners.

    Glass is generally less tolerant of impact and of being dragged on the work, and any cup can crack if overheated or dropped. Limits vary with the maker, so check the torch manual and inspect every cup for cracks before use, replacing any that are damaged.

    What should I check about the heat shield or insulator when replacing it?icon-minus-redicon-plus-red

    The heat shield (insulator) sits between the torch head and the gas lens body. It is generally described as protecting the head from heat, helping seal the gas path and insulating the live parts. A worn, cracked or missing one can let gas leak or heat reach the torch head.

    Insulators are sized to suit particular bodies and cups. A large diameter lens usually needs a matching large diameter shield and cup, and a body with a smaller thread may not fit a cup meant for a larger style. Check the old part, the torch series and the manual rather than relying on appearance.

    What collet types are used and how do I choose?icon-minus-redicon-plus-red

    A standard split collet has a slot that closes as the back cap is tightened. A wedge collet has no slot and is driven into the body; a welding-equipment maker's manual lists wedge collets as improving arc starting, stability and control. Shorter stubby collets are made for compact front ends and are not interchangeable with standard-length ones.

    The collet must match both your torch style and the tungsten diameter. Do not over-tighten the back cap, as this can distort the collet and cause a loose fit. If the electrode slips or shows arcing marks at the collet, replace it.
