    Rapid Ref : CK-2A5L  Mfr Ref : 2A5L

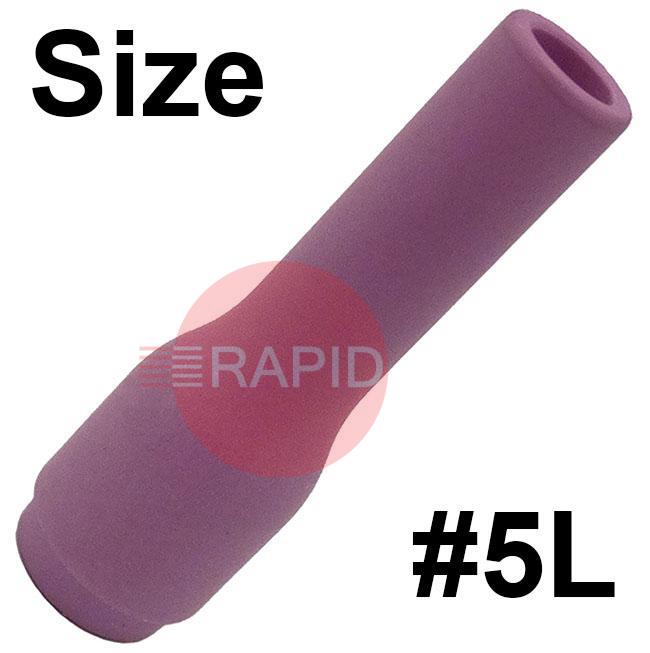

    CK Long Alumina Nozzle 8mm Bore A796F72
    2A5L CK-2A5L

    £12.95  EX VAT
    SSP Suggested Selling Price = £25.89  YOU SAVE £12.95

    Related Items

    CK 2 Series Standard Parts FAQs

    Answers on choosing, fitting and looking after the standard collets, collet bodies, back caps and ceramic cups for a small TIG torch.

    In what order do I fit the parts, and how tight should the back cap be?icon-minus-redicon-plus-red

    The usual sequence is to screw the collet body (or gas lens) into the torch head, slide in the collet, fit the cup, then put the tungsten and back cap in from the rear. Do the final tightening of the back cap once the tungsten is in place.

    A welding-equipment maker's manual says to tighten the cap only until the tungsten can no longer be moved by hand, and to tighten the collet body or gas lens only lightly. It also warns that loose parts can cause poor arc starting. Always switch off and isolate the equipment before working on the torch, and follow the manual for your torch.

    Is grinding thoriated tungsten a health concern?icon-minus-redicon-plus-red

    Yes, grinding is the main hazard with thoriated electrodes because it creates fine, slightly radioactive dust that can be inhaled. Typical controls are a dedicated grinding wheel with local dust extraction, sealed bags for the dust and washing facilities nearby.

    Ceriated and lanthanated electrodes are common alternatives, especially for DC work, and zirconiated types are often used for AC. Your employer's risk assessment and the maker's instructions decide what is right for your work.

    What is a wedge collet and how does it differ from a split collet?icon-minus-redicon-plus-red

    A split collet has a slit at its rear and is squeezed onto the tungsten when the back cap is tightened. A wedge collet has no slit; the back cap drives its tapered end into the collet body or gas lens to lock the tungsten.

    A welding-equipment maker's troubleshooting guide says the ordinary split style can twist or jam and suggests trying a wedge style when collet life is short or the torch heats up inside. Sellers also claim a firmer grip, but treat that as a sales claim. Either type must match your torch family and the tungsten diameter.

    When is it worth moving from a standard collet body to a gas lens?icon-minus-redicon-plus-red

    A standard collet body sends gas out through side holes, which can make the flow turbulent. A gas lens uses fine mesh screens to smooth it. A welding-equipment maker's troubleshooting guide suggests changing to gas lens or gas saver parts when poor shielding comes from turbulence or drafts.

    It usually helps most when you need a longer tungsten extension or better cover on stainless steel; with a very short extension you may see little difference. A gas lens needs its own compatible parts and cups, so it is not a simple swap. Check what your torch family accepts.
