    Rapid Ref : CK-MR4P  Mfr Ref : MR4P

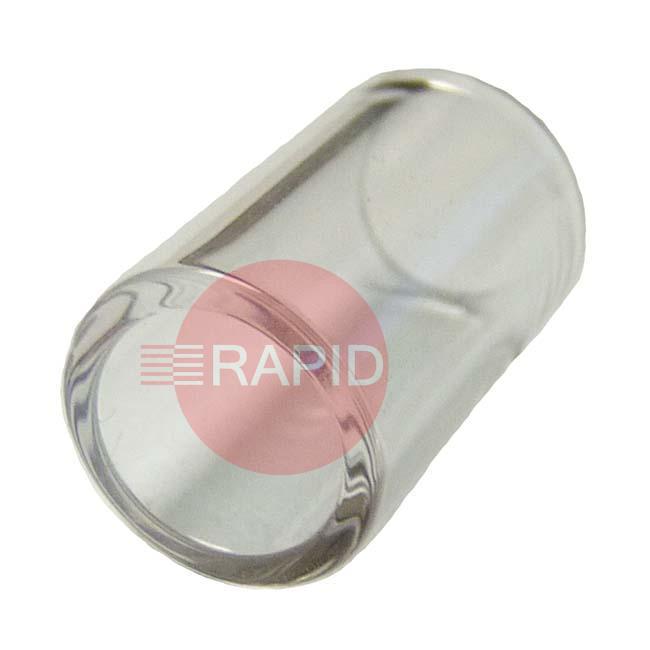

    CK Micro Torch Pyrex Cup 1/4
    MR4P CK-MR4P

    £23.40  EX VAT
    SSP Suggested Selling Price = £46.80  YOU SAVE £23.40

    Micro Torch Parts FAQs

    Straight answers to the questions people ask when choosing and looking after the tungstens, cups, collets and small spares for a compact micro TIG torch.

    Which type of tungsten is best for a micro torch: ceriated, lanthanated or thoriated?icon-minus-redicon-plus-red

    For low-current work, ceriated (grey) and lanthanated (black, gold or blue) tungstens are the usual choices. Both suit DC and can also be used on AC, and both are commonly chosen for easy arc starting and good stability at lower current. Technical sources list ceriated for the lower to mid current range.

    Thoriated tungsten (red, and other thoria colours) is slightly radioactive. Technical guidance advises weighing whether it is justified and notes that lanthanum or cerium oxides can replace it with lower risk. Pure and zirconiated tungstens are mainly for AC work on aluminium. Check the colour band or marking on the electrode, and the maker's guidance, before use.

    How should I sharpen tungsten for a micro torch?icon-minus-redicon-plus-red

    For thin material and low current, grind the tungsten to a fine point. A small, intense arc from a pointed electrode suits thin sheet, and the lower the current the smaller the tip angle should be. Some sources recommend a very small flat on the end of the point; the right angle and flat depend on the current and the maker's guidance.

    Grind lengthwise, along the electrode, not around it, so the grind marks run towards the tip. Circular marks can make the arc wander. Use a grinding wheel kept only for tungsten so the point does not pick up contamination, and re-grind to the same shape each time for repeatable results.

    What should I do if my tungsten touches the weld pool?icon-minus-redicon-plus-red

    Stop and re-grind it. Touching the pool, or touching the filler rod to the electrode, contaminates the tip. A contaminated tungsten typically gives a wandering, unsteady arc, can cause porosity, and can leave tungsten inclusions in the weld.

    Break or cut off the contaminated end, then re-sharpen the tungsten properly before you continue. If the contamination is severe, fit a new electrode. Hotter pools tend to contaminate the tungsten faster, so keep a steady arc length and a steady hand, and keep spare short tungstens to hand. Using a tungsten with a damaged tip will only make the starting and arc problems worse.

    Should I use a clear glass cup or a ceramic cup on a micro torch?icon-minus-redicon-plus-red

    A clear borosilicate glass cup lets you see the tungsten and the pool, which helps in corners and tight spaces. It is a good choice for small, close-up work and for learning, because you can see where the electrode is.

    The trade-offs are that glass is brittle and does not suit being dragged or walked across rough surfaces, and it can cloud with fume deposits over time. A ceramic (alumina) cup is the tougher option and is usually what comes fitted to a torch. Replace any cup that is cracked, chipped or badly clouded, and choose the cup that is made for your torch style, as cups are not interchangeable between torch types.
