CK 2 Series Stubby Parts FAQs
Short back caps, short collet bodies and related spares for compact TIG torch heads: how to identify, fit and look after them.
What is a stubby set-up and when is it worth fitting?

A stubby set-up uses shorter parts at the front and rear of the torch head, such as a short back cap, a short collet body and a short collet. These shorten the overall length of the torch head, which helps in tight corners and confined spaces.
Short parts may also carry a lower current or duty-cycle rating than full-length parts, so they suit jobs where access is the problem. Check the rating for the parts you fit in the torch manual. For open joints a standard-length set-up is usually easier to handle. Check that the parts are made for your torch series before ordering.
Why does a short back cap need shorter tungsten?

A short back cap has limited internal depth, so a full-length electrode will not fit behind the collet. The tungsten may need to be cut down so the cap can screw fully onto the torch.
Some welders use up worn electrodes this way, and keep a few short pieces ready for confined work. Make sure the stub is long enough for the collet to grip it firmly and for the tip to reach the correct stickout. Follow the torch manual for the length the cap allows, and for how to prepare the tungsten.
What does the O-ring on a back cap do, and when should I replace it?

The O-ring seals the back cap against the torch body so shielding gas cannot escape from the rear, and so air is not drawn in. Rubber and silicone seals can dry out, crack or flatten with age and heat.
A worn seal may show up as higher gas use, an erratic arc or porosity in the weld. Inspect the O-ring whenever you change the tungsten, and replace it if it looks cracked, hard or flattened. Many short back caps are supplied with the O-ring fitted, but check the torch parts list for the correct type.

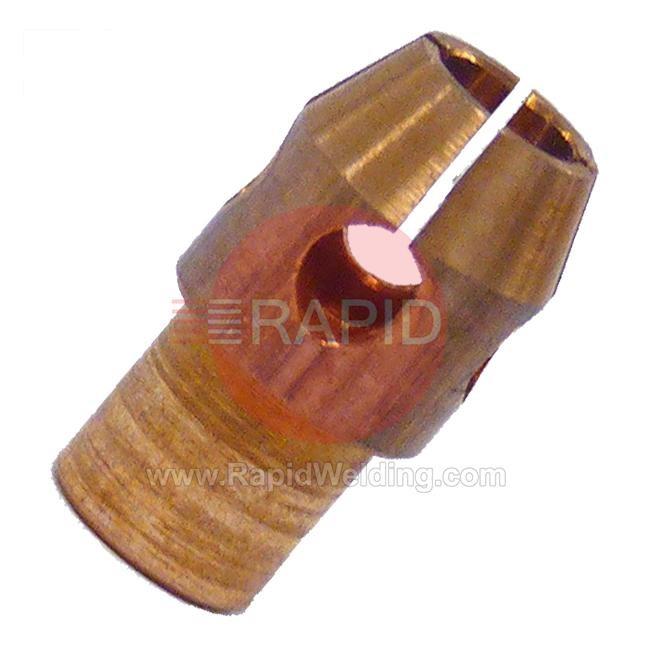

What is a short collet body and which parts does it work with?

A short collet body is a shorter version of the part that holds the collet and feeds gas to the cup. It is designed to be used with a matching short collet and a short cup, which together give the compact head.
It sits in the same place as a standard collet body, but the parts are sized as a set, so mixing lengths may not seat or seal properly. It also needs the right insulator or heat shield, and its size must match the tungsten diameter. Check the torch series and the parts list before ordering.
