CK Gas Cups FAQs
Gas cups (nozzles) for TIG torches: what they do, how the size numbers work, and how to choose, fit and look after the right one.
What does a TIG gas cup actually do, and why does its size matter?

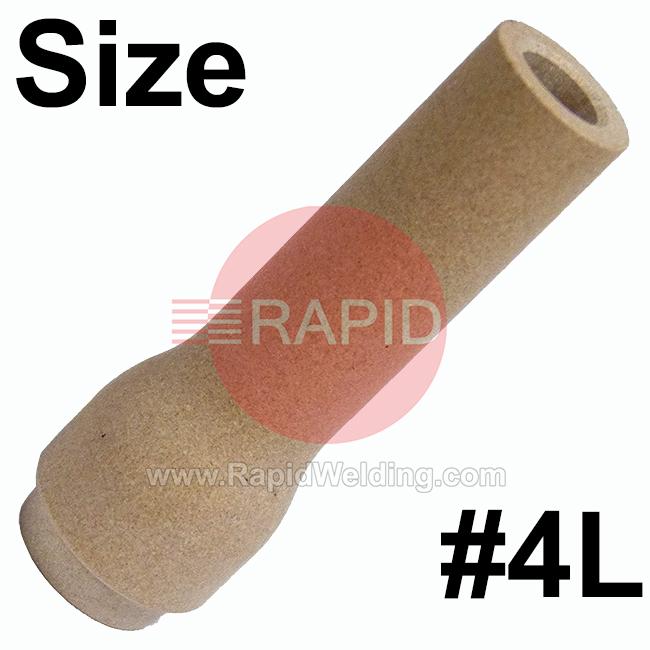

The gas cup, sometimes called a nozzle, directs the shielding gas around the tungsten and the weld pool so that air cannot reach the molten metal. Its diameter and length decide how wide and how steady that gas column is.
In general, a larger diameter gives a longer, smoother (laminar) flow and better protection. A smaller cup suits tight spaces and small parts, but pushes the gas out faster and can make it turbulent. So the right cup is usually the largest one that still gives you the access and view you need for the joint.
What is the difference between a standard cup and a gas lens cup?

A standard collet body passes the gas out through a few small ports, while a gas lens body has layers of fine mesh that spread the gas into a smoother, less turbulent column. Gas lens cups are made to go with a gas lens body, and are not usually interchangeable with the cups for a standard collet body.
A gas lens is generally recommended for critical or high-quality welds, and lets you extend the tungsten further than a standard body allows. It is often chosen for stainless steel and other metals where gas coverage matters most. Check which type your torch is set up for before ordering.
Will any cup fit my torch, and how do I check compatibility?

No. Cups are made for particular torch styles, and a cup for one style may not fit another, even if it looks similar. The thread, the seat and the collet body type all have to match, and gas lens cups need a gas lens body.
To identify the right part, check the torch manual or the markings on the torch head, and compare the old cup's overall length, bore, thread or push-fit style and shape. If the torch is an older or unusual one, a photo and the measurements of the old cup, together with the torch details, help our team confirm the match before you order.
How far can the tungsten stick out beyond the cup?

A commonly quoted rule of thumb for a standard collet body is to keep the tungsten extension no longer than about the inside diameter of the cup, with a gas lens often allowing more. This is an informal guide, not a standard, and sources differ.
The right amount depends on the cup size, the gas flow, the joint and any draughts around the work, so follow the torch maker's instructions. If you regularly need a long extension, a larger cup or a gas lens setup is usually a better answer than simply turning up the gas flow.
