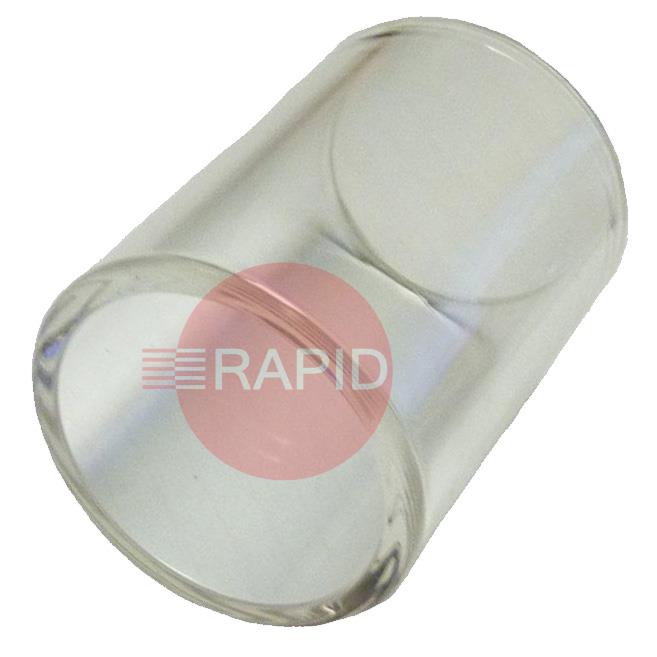

Cup Pyrex (1-1/8" x 1-7/8") EA. 4 Series LD Gas Saver.
Answers to the questions buyers ask when choosing, fitting and looking after the replacement parts for a TIG gas saver (gas lens) torch set-up.
A typical set-up has a gas lens body with its mesh screens, a collet to grip the tungsten, a backcap with a gas-sealing O-ring, an insulator and a ceramic cup. The O-ring and cup are the usual wear items, along with the collet if it stops gripping the tungsten.The mesh screens can also become discoloured, blocked or damaged. Check each part when the torch is stripped down and replace anything worn, cracked or distorted.
Gas saver parts are made for particular torch families, for example one family covers some torch types and a different family covers others. The gas lens body, cup and insulator usually need to belong to the same family. Parts that look alike can differ in thread, length and diameter.Check the torch type marking and the manual, and compare the old part with the new one before ordering. Our team can help you identify the right part if you are unsure.
Cups are numbered by the diameter of the opening, so a higher number means a wider opening. A larger cup gives wider gas coverage, while a smaller one reaches into tight joints more easily. Gas lens set-ups are usually used with larger cups, and a longer cup lets you extend the tungsten further while keeping it inside the gas shield.A gas saver cup normally needs to be the type made for gas lens use. Check the cup size and gas flow against the torch maker's guidance.
Most cups are made of alumina, a hard ceramic that insulates against electricity. Technical ceramics sources describe alumina as brittle and sensitive to sudden temperature change, so cups can crack or chip if dropped or knocked.There is no set life. Replace a cup that is cracked, chipped at the rim or has deposits that cannot be removed, as these upset the gas flow and can let air into the weld.
