Practical answers on the spare parts for this type of auto-darkening welding and grinding helmet: lenses, filter cassette, headgear and shell.
Replace it when it is cracked, scratched, pitted or built up with spatter. A maker's manual says damaged surfaces, even on protection plates, reduce vision and impair protection, and tells users to check the helmet regularly before work.The front lens takes the spatter so that the filter behind it does not have to, so it is a consumable. On an auto-darkening helmet, a dirty or damaged front lens can also be a reason why the filter flickers or does not darken as it should, so it is worth checking first when that happens.
The inner cover lens sits between the filter and your face. A maker's manual states that the auto-darkening filter must only be used together with the inner cover lens, and that the filter must stay between the outer and inner protective lenses.So it is not an optional part. Inspect it with the rest of the stack, and replace it if it is cracked, scratched or too dirty to see through. When you refit parts, put them back in the same order they came out.
Check the manual for your helmet, as the method varies by design. On this type of helmet the lens is normally held by a clip or retainer that you reach from the inside of the shell. Release it, take out the old lens and fit the new one the same way round, noting how any gasket sat before you remove it.Peel off any protective film from the new lens first, as a film left on can stop the filter reacting properly. Do not use the helmet without the front lens fitted, as it is there to take the spatter and keep the filter and sensors clean.

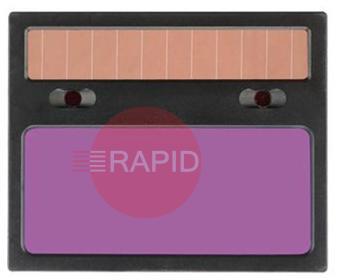

You can swap the whole cassette for the type your helmet's maker specifies, following the manual, but you should never open or tamper with the filter itself. Makers state this plainly, along with a warning not to use replacement parts other than those they specify.If the filter does not darken when you strike an arc, stop welding immediately and contact your supervisor or dealer. Before assuming the cassette has failed, check the front cover lens, the sensors and the sensitivity setting, and, depending on the model, the power supply.
