    Rapid Ref : 79014301X

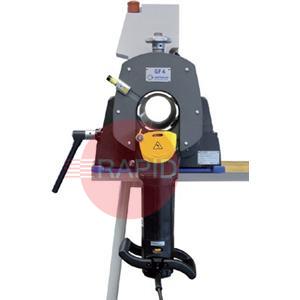

    GF 6 AVM Pipe Cutting Machine, with Automatic Feed
    79014301X

    Select Option
    Prices From £12270.00 ex VAT
    Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

    The new GF series sets new standards in orbital pipe machining. Numerous innovative functions combined with an ergonomic design create significant advantages for you in the industrial prefabrication of pipeline systems. Cutting and bevelling high-alloy steel (stainless steel), low and unalloyed steel, plastics, casting materials and non-ferrous metals in just seconds, using the “Planetary Cutting” method.

    GF AVM
    Pipe Cutting and Bevelling Machine with automatic feed module AVM. This intelligent solution continuously controls the cutting speed depending on the torque and the parameter settings. The AVM improves the handling of the GF and RA machines and stops automatically after the cutting process. The restart inhibit does not allow an unintended start-up.

    • Anthracite-coloured coated components for improved sliding properties and protection against corrosion
    • Stainless steel clamping attachments (Code 790142241) for protection against contact corrosion included
    • Locking mechanism prevents unauthorised usage and theft
    • A new ergonomically designed motor handle for a safe and comfortable operating position, which also enables easy cutting of elbows
    • Integrated line laser to determine the cut-off point
    • 2 position clamping jaws to reduce chatter and enable smaller lengths of pipe to be machined
    • 1 multifunctional tool for all adjustments on the machine
    • Extended speed range (65 - 215rpm), ideal for the cutting of high-performance materials (Hastelloy®, P91, etc.)
    • Swivel cable with a quick-disconnect coupler for easy and quick replacement of power cables

    Product Details

    Machine Includes:

    • 1 Transportation Case
    • 1 Saw blade (Code 790042064)
    • 1 Set of stainless steel clamping attachments
    • 1 Mounting Plate
    • 1 Tool Set
    • 1 Tube of saw blade lubricant GF TOP
    • 1 Bottle of special gear oil
    • 1 Set of operating instructions and spare parts list
    • Quick disconnect swivel cable

    Brochures, Manuals & Videos

    BROCHURES & MANUALS
       View Brochure

    Related Items

    GF Pipe Cutting Machines FAQs

    Practical answers on choosing, setting up and using orbital pipe cutting and bevelling machines that carry a small circular saw blade round the pipe.

    Will cutting with an orbital saw machine leave heat marks on stainless steel pipe?icon-minus-redicon-plus-red

    Normally not. These machines use a cold, mechanical cutting process: a small circular saw blade plunges into the pipe and is driven round it, so the pipe is not heated the way it would be by a flame or plasma cutter. That matters on stainless steel, where heat tint and a heat-affected zone can reduce corrosion resistance.

    The cold process only holds if the cut is done properly. A worn blade, the wrong blade for the material, too much feed or a lack of lubricant can still create heat, so use the blade, speed and lubricant recommended in the manufacturer's manual.

    Which materials can this type of machine cut, and do I change the settings for each?icon-minus-redicon-plus-red

    Machines of this type are made to cut and bevel stainless and other high-alloy steels, low-alloy and plain steels, cast materials, non-ferrous metals such as aluminium, copper and brass, and many plastic pipes. Most have an electronic variable speed control so the blade speed can be matched to the material.

    In general, tougher alloys call for a slower blade speed and a blade made for that material, while softer metals and plastics need their own care to avoid clogging or melting. Do not guess: the manual and the blade maker's chart give the speed and blade for each material, and the data plate shows what your machine can handle.

    Can I cut short lengths of pipe or elbows with one of these machines?icon-minus-redicon-plus-red

    Some machines can, but it depends on the design. Certain models have clamping jaws that can be set in a second position so a shorter length of pipe can be held and cut, and some have a second blade position or a motor handle shaped so that an elbow can be cut off.

    Check the manufacturer's data sheet for your machine before buying or planning the job, because this is not a feature of every machine. For short lengths, make sure the pipe is gripped firmly by the clamping jaws and cannot move or rotate, since a loose short piece is a common cause of poor cuts.

    How do I mark and line up the cut position accurately?icon-minus-redicon-plus-red

    Many machines include a line laser that projects a line across the pipe to show exactly where the blade will cut. Mark the pipe at the position you want, bring the laser line onto the mark, then clamp the pipe so it cannot slip.

    Allow for the thickness of the blade, and for any material that will be removed by a bevel, when you measure the length you need. Do not look into a laser beam, keep the lens clean, and follow the manual for fitting and aligning the laser, as the method differs between machines.
