Practical answers on choosing, setting and looking after V-seam bevel cutters for orbital pipe cutting machines.

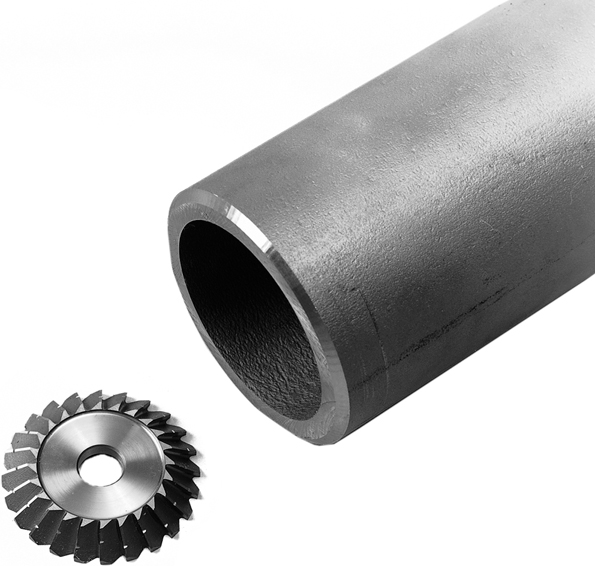

A bevel cutter machines an angled face on the end of a pipe so that two pipe ends form a V-shaped groove when they are brought together. That groove lets the weld reach the root and fuse properly through the wall, rather than sitting on the surface of a square joint.On an orbital pipe cutting machine the bevel cutter is fitted in place of, or alongside, the saw blade, so the weld preparation is done in the same set-up as the cut. The angle and profile you need come from the welding procedure for the job.
On many orbital machines you can, using a saw blade and a bevel cutter together, but only up to a limited wall thickness set by the maker. With two tools working at once the machine has to travel round the pipe more slowly than for a normal cut.For thicker walls, cut first and then bevel as a separate operation. Check the maximum wall thickness for combined cutting and bevelling in your machine's manual, and make a test piece before working on the real pipe.
The cutter's maximum bevel height tells you how much of the wall it can machine. When the cutter is set, its teeth must cover the wall thickness of the pipe and reach the bevel position you want, so a cutter with too little bevel height will leave part of the wall unprepared.Also match the cutter diameter and fixing to your machine, and the bevel angle to your welding procedure. Look at the specification of the cutter and the machine's manual together, or ask our team to help you match them.
The root face, or land, is the short flat section left at the inner edge of the bevel instead of cutting right to a knife edge. It supports the root run of the weld and helps stop burn-through when the pipe ends are lined up and welded.How big it should be, and the gap left between the ends, are set by the welding procedure, so follow that rather than a general figure. Set the cutter depth so the face you leave matches the specification, and check it on a test bevel.
Cutters are made in different grades for different materials, and one grade does not suit everything. Lower grades are for plain mild steel and similar low-alloy material, while higher grades are made for stainless steel and other high-alloy or tougher materials.Check the material the maker lists for each cutter before using it, and never push a cutter beyond what it is rated for. Using the wrong grade usually wears the teeth quickly and gives a poor bevel.
Set the cutter low, place the pipe so its end almost reaches the cutter, swing the machine into bevelling position and turn the feed handwheel until the cutter teeth cover the pipe wall and the bevel sits where you want it. Each mark on the handwheel scale moves the cutter by a small, fixed amount, so fine adjustments are easy.Always cut a test bevel first, check the angle and the root face, then readjust and repeat if needed before working on the actual pipe.
