Rapid Ref : EZG9  Mfr Ref : GBC9

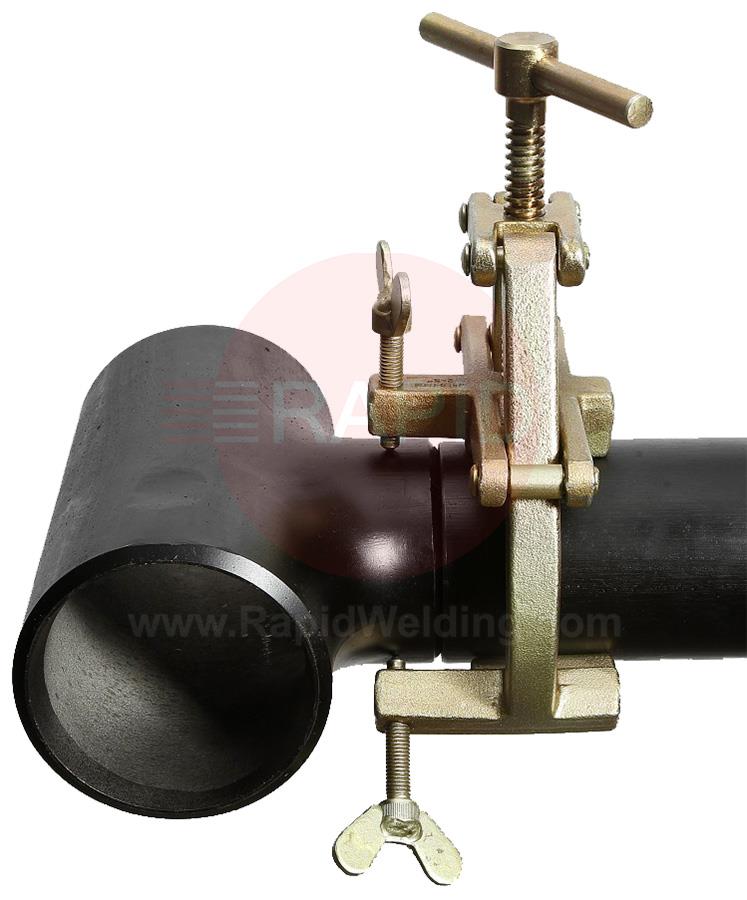

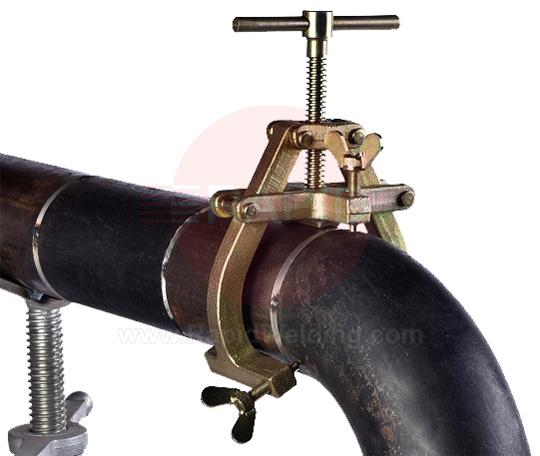

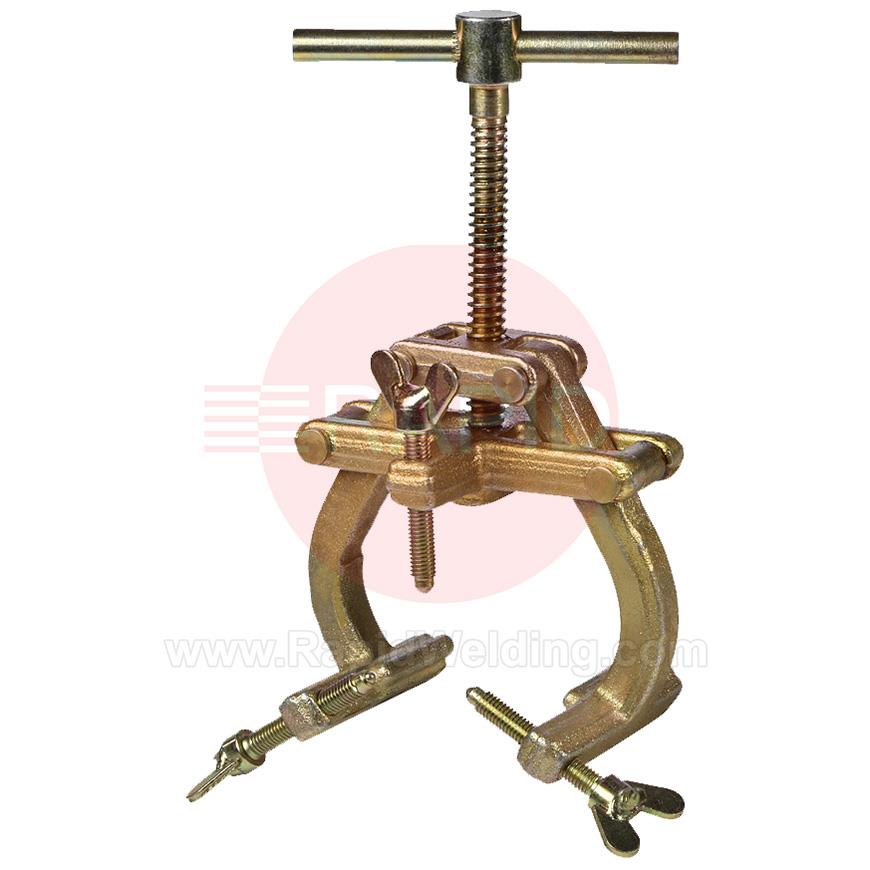

Gold Bridge Pipe Clamp, 5 - 9" (127 - 229mm)
GBC9 EZG9

£139.60  EX VAT
 Buy in 3 easy interest free payments of £46.53† with

The Gold Bridge Clamp is manufactured out of forged steel to enable maximum strength and durability. A quality product at a low cost.

Features

  • Quick and easy to use
  • Combines accuracy with safety
  • Instant centring
  • Wing bolts with stainless steel bearings

Product Details

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure

Related Items

Fit Up Clamps FAQs

Answers to common questions about clamps that hold pipe ends in line and at the right gap while you tack them together.

What does a fit up clamp actually do?icon-minus-redicon-plus-red

A fit up clamp holds two pipe ends (or a pipe and a fitting) in line with each other while you set the joint and tack it. External types go on the outside of the confronting pipe ends and help bring them to match one another. It helps you keep the gap even all the way round and frees both hands for tacking.

It does not replace good preparation. The bevels and root faces still need to be cut and cleaned properly, and the clamp is only as good as the pipe ends you put in it. Treat it as a way of holding a joint you have already set up correctly, not as a way of forcing a poor joint into shape.

How wide should the root gap be, and why does it matter?icon-minus-redicon-plus-red

The root gap lets the first pass melt through to the inside of the joint evenly. Too small a gap is a recognised cause of incomplete root penetration, and too large a gap can lead to excess penetration, with the weld pool dropping through inside the pipe.

The correct figure depends on the pipe size, the process and the bevel, and is set by your welding procedure specification, so use the value it gives. Set the gap accurately and tack adequately so that it does not close up during tacking and welding. A fit up clamp helps you hold the gap steady all the way round, but check it at several points before and after tacking.

What is hi-lo and why do I need to control it?icon-minus-redicon-plus-red

Hi-lo is the step between the inner surfaces of two pipe ends where one sits higher than the other. It happens because pipe is never perfectly round, wall thickness is not perfectly uniform around the circumference, and the ends rarely meet exactly.

If it is left uncorrected, it can make the root pass harder to run and can leave a stress concentration at the root of the weld. A fit up clamp lets you correct the step before you tack, typically by adjusting the screws or the bridge. How much hi-lo is acceptable is set by the welding procedure and the governing code for your job, so check those rather than relying on a rule of thumb.

Should I tack weld with the clamp on, and what makes a good tack?icon-minus-redicon-plus-red

Fit up clamps are designed for you to set the joint, tack it, and then release the clamp. Tacking can pull a joint slightly out of position, so recheck the gap and alignment after tacking, and ideally before you take the clamp off. How many tacks you need, and when the clamp comes off, depends on the pipe size, wall thickness, material and your welding procedure.

Tacks should be inspected, and any slag, porosity, lack of fusion or cracks removed before the root pass. Feathered tack ends should be ground or blended so that they merge into the final weld. Tacks must also follow the welding procedure, including any preheat, because rapid cooling of a small tack can leave brittle, crack-prone metal.
