Rapid Ref : KBM-18-ONLY  Mfr Ref : KBM-18-100

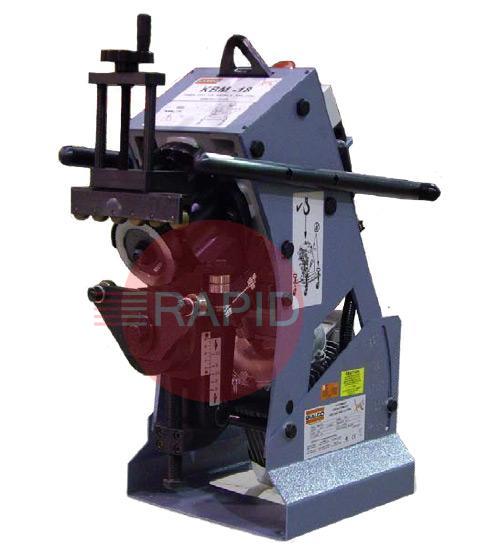

Gullco KBM 18 Plate Bevelling Machine, 415v
KBM-18-100 KBM-18-ONLY

£9858.00  EX VAT
 Buy in 3 easy interest free payments of £3286.00† with

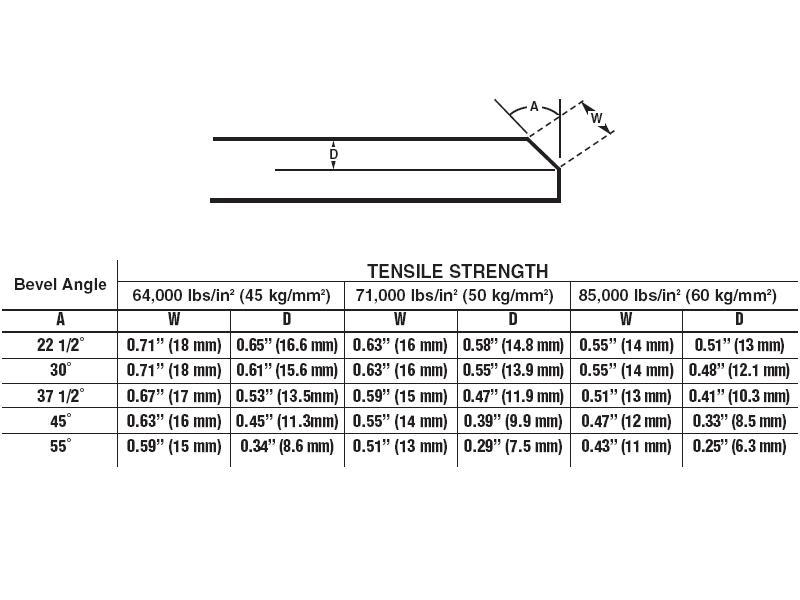

Adjustable bevelling head to produce bevel angles 22-1/2° through 55°. Bevelling speed 120 IPM (305 cm/min). Bevelling is produced by a rotary shear type cutter ideal for bevelling mild steel, stainless steel and aluminium plates from 1/4" to 1-1/2" (6.0 - 38.1mm) thick with a maximum bevel width. 0.70" (18mm) at a standard bevel angle of 30°.

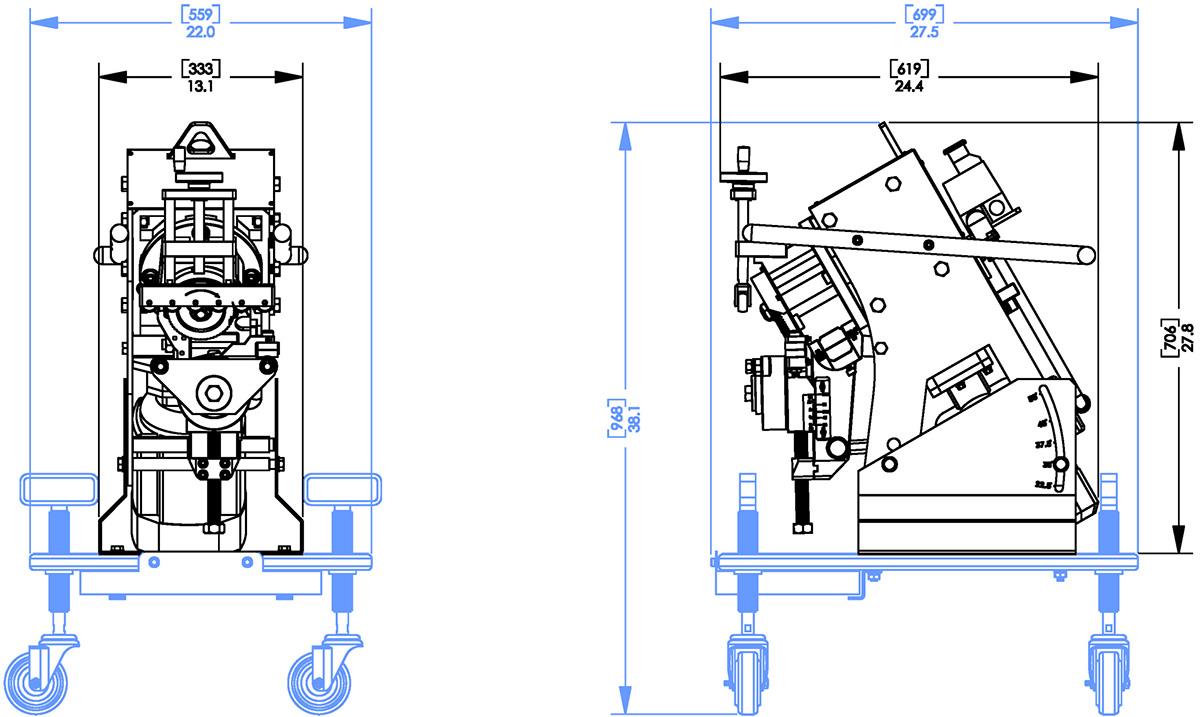

Machine supplied with a KBM-18-X1C medium tooth cutter, angle bevel pins for 22-1/2°, 30°, 37-1/2°, 45° and 55° bevels. All bevel angles are obtained by tilting the adjustable cutter head assembly on its base frame. Machine complete with a 2 H.P. 3-phase motor. Voltages available: 230V, 460V and 575V, 3 phase 60hz, and 380V, 415V, 3 phase, 50hz. (Specify voltage at the time of placing order). Weight: 285 lbs (129.2Kg) - including undercarriage assembly. *Thinner material can be bevelled - consult the factory for details.

Product Details



Brochures & Manuals

Related Items

Gullco Bevelling Machines FAQs

Answers to common questions about portable, electrically powered plate edge bevelling machines used to prepare plate edges for welding.

Do I need a separate underside machine to bevel both sides of a plate?icon-minus-redicon-plus-red

A standard machine bevels the top edge of the plate. For joints that need a bevel on both faces (for example X or K preparations), the usual choices are to turn the plate over and bevel the second side, or to use an inverted (underside) version of the machine that bevels the lower edge without turning the plate.

Turning heavy plate takes time and handling effort, so an underside machine is worth considering if you regularly prepare double-sided bevels on large plate. Inverted machines usually need more frequent cleaning, because swarf collects around the cutter, so follow the maker's inspection guidance.

Why do I have to bevel in several passes instead of one?icon-minus-redicon-plus-red

A bevelling machine can only remove so much metal at once. Overloading the cutter and drive causes poor feeding, a rough finish and broken cutters. Makers therefore rate a maximum bevel width and advise staying below it in a single pass, and going lighter still on tougher materials.

One maker, for example, advises no more than about 70 per cent of the rated capacity in one pass, and no more than about 50 per cent for high-tensile steel and stainless steel. The exact figures depend on your machine, so check its manual. For a large bevel, set a conservative first cut, then re-adjust the slide or depth setting for the second pass. Doing a test run on an off-cut first is sensible.

What power supply does the machine need, and how do I check the cutter rotation?icon-minus-redicon-plus-red

Machines of this type are normally three-phase, built for a specific supply voltage and frequency which is shown on the product label. If the supply does not match the label, do not connect it. The machine must also be properly earthed.

The cutter has to turn in the direction marked on the machine. On a three-phase motor, wrong rotation means two of the three live connections are the wrong way round, and the machine can be damaged if it is used that way. Check the rotation before feeding any plate in. If it is wrong, have a competent electrician swap two live connections at the plug while the supply is disconnected.

Can the machine bevel curved plate edges, such as discs?icon-minus-redicon-plus-red

Many plate bevelling machines are designed for straight edges and also for circular or curved plate, provided the guide rollers are set correctly. The guide rollers sit slightly proud of the guide bracket for a straight edge. For a concave edge (the inside of a disc) they need to be set further back, and for a convex edge (the outside of a disc) further forward.

Curved and awkward pieces must be supported properly so the plate stays square to the cutter. Twisting or unsupported weight puts side loads on the cutter and is a common cause of breakage. Check your manual for the guide roller adjustment and any minimum curve radius.
