Rapid Ref : KBM-28-100

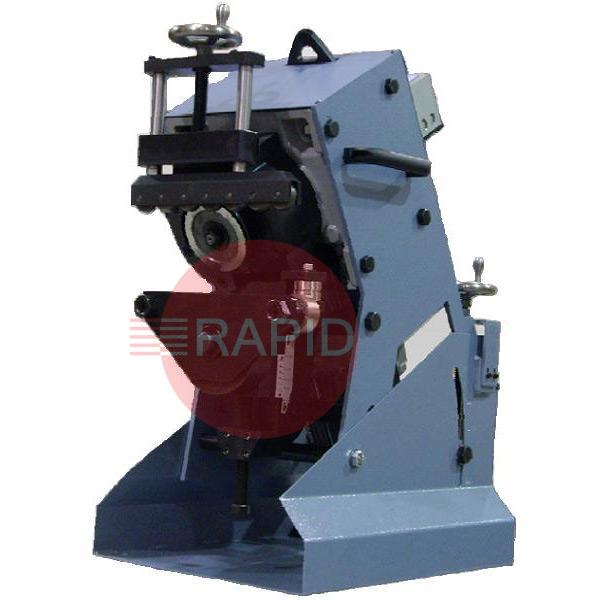

Gullco KBM 28 Portable Plate Edge Bevelling Machine
KBM-28-100

£17151.00  EX VAT
 Buy in 3 easy interest free payments of £5717.00† with
Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

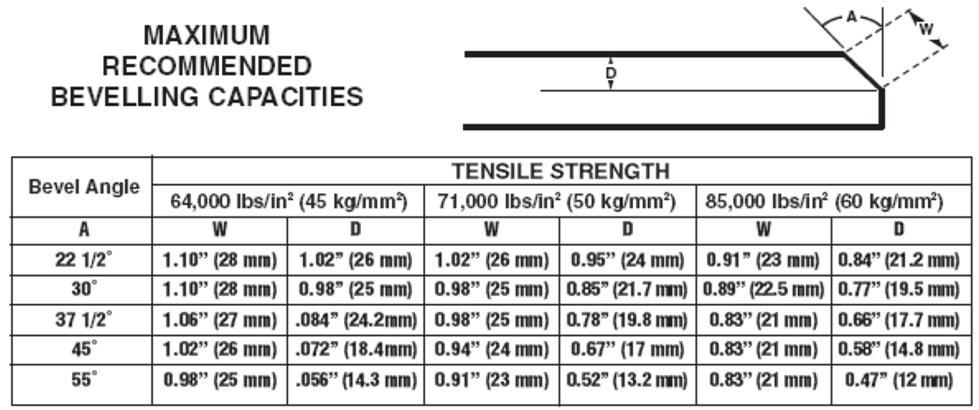

With adjustable bevelling head to produce bevel angles 22-1/2°, through 55°. Bevelling speed 120 IPM (305cm/min). Bevelling produced by a rotary shear type cutter ideal for bevelling mild steel, stainless steel and aluminium plates from 5/16" to 2" (8 - 50mm) thick with a maximum bevel width of 1.10" (28mm) at a standard bevel angle 30°.

Machine supplied with a KBM-28-X1C medium tooth cutter, angle bevel pins for 22-1/2°, 30°, 37-1/2°, 45° and 55° bevels. All bevel angles are obtained by tilting the adjustable cutter head assembly on its base frame. The machine is complete with a 3HP, 3-phase motor. Voltages available: 230V, 460V and 575V, 3 phase 60hz, and 380V, 415V, 3 phase, 50hz.

(Specify voltage at the time of placing order)

Product Details



Brochures & Manuals

Related Items

Gullco Bevelling Machines FAQs

Answers to common questions about portable, electrically powered plate edge bevelling machines used to prepare plate edges for welding.

What does a portable plate edge bevelling machine do, and how does it work?icon-minus-redicon-plus-red

It is a mains-powered machine that cuts a straight, machined bevel on the edge of steel, stainless or aluminium plate so the edge is ready for a weld joint. Many work as a rotary shear: a toothed, hardened cutter removes the metal and also pulls the plate through the machine, or pulls the machine along a fixed plate.

Because the bevel is machined, it avoids the heat of thermal cutting. Most machines of this type are meant for straight edges and, with the right guide settings, large curved edges. The adjustable head sets the bevel angle and depth. Always check your own machine's manual for the materials, thickness range and bevel angles it is rated for.

Do I need a separate underside machine to bevel both sides of a plate?icon-minus-redicon-plus-red

A standard machine bevels the top edge of the plate. For joints that need a bevel on both faces (for example X or K preparations), the usual choices are to turn the plate over and bevel the second side, or to use an inverted (underside) version of the machine that bevels the lower edge without turning the plate.

Turning heavy plate takes time and handling effort, so an underside machine is worth considering if you regularly prepare double-sided bevels on large plate. Inverted machines usually need more frequent cleaning, because swarf collects around the cutter, so follow the maker's inspection guidance.

Why do I have to bevel in several passes instead of one?icon-minus-redicon-plus-red

A bevelling machine can only remove so much metal at once. Overloading the cutter and drive causes poor feeding, a rough finish and broken cutters. Makers therefore rate a maximum bevel width and advise staying below it in a single pass, and going lighter still on tougher materials.

One maker, for example, advises no more than about 70 per cent of the rated capacity in one pass, and no more than about 50 per cent for high-tensile steel and stainless steel. The exact figures depend on your machine, so check its manual. For a large bevel, set a conservative first cut, then re-adjust the slide or depth setting for the second pass. Doing a test run on an off-cut first is sensible.

What power supply does the machine need, and how do I check the cutter rotation?icon-minus-redicon-plus-red

Machines of this type are normally three-phase, built for a specific supply voltage and frequency which is shown on the product label. If the supply does not match the label, do not connect it. The machine must also be properly earthed.

The cutter has to turn in the direction marked on the machine. On a three-phase motor, wrong rotation means two of the three live connections are the wrong way round, and the machine can be damaged if it is used that way. Check the rotation before feeding any plate in. If it is wrong, have a competent electrician swap two live connections at the plug while the supply is disconnected.
