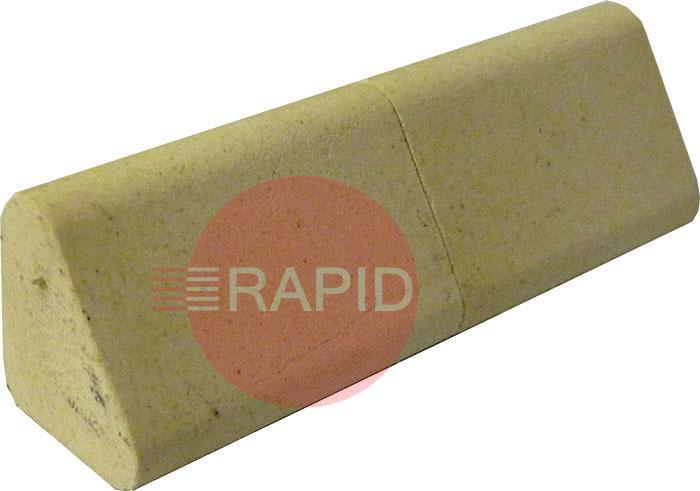

    Gullco Katbak 1G33-45 Ceramic Weld Backing Tiles, 12m Box
    1G33-45

    £47.59  EX VAT
     Buy in 3 easy interest free payments of £15.86† with

    All 1G33 tiles are suitable for K or X preps where the bevel angles are 45, 60 or 90°. Also suitable for welding with M.I.G./M.A.G. solid wire, metal-cored or flux-cored wires. They are a substitute for round tiles where the benefit of the 1G33 range of tiles is a “full-face” contact with the joint preparation... reducing the risk of burn-through as may occur with the round tiles where you have a single point contact of the tile with the workpiece. 1G33-90 is also used when reverse side of a single bevel, single V butt joint where the reverse angle will always be 90°.

    Can be used as shown below.

    • Impart X-ray quality back beads on root pass
    • Weld one side only
    • Deposit more weld metal
    • Root weld and fill in one pass
    • Eliminate defects and rework
    • Eliminate costly unnecessary gouging and grinding
    • Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
    • Special sizes and configurations available
    • Conveniently packaged and sealed in plastic for moisture-proof protection
    • Wider heat receptive pressure sensitive foil for improved adhesion to work piece



    12m - 40ft./ box
    Gullco Katbak 1G33-45

    Specifications
    A 9/16 in
    14.3 mm
    B 5/8 in
    15.9 mm
    C 1 in
    25.4 mm
    D 40°
    E 55°
    F 85°
    G 1/8 in
    3.2 mm
    H 7/64 in
    2.8mm
    I 3/32 in
    2.4mm

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Ceramic Backing Tiles FAQs

    Straight answers to the questions people ask most when choosing and using ceramic weld backing tiles.

    What are ceramic backing tiles and what are they used for?icon-minus-redicon-plus-red

    Ceramic backing tiles are strips of heat-resistant ceramic, usually fixed along the back of a joint with an adhesive aluminium foil tape. They support the molten weld metal from behind, so you can make a full-penetration weld from one side only.

    They are widely used in shipbuilding, structural steelwork, tanks and pressure parts where the back of the joint cannot be reached, or where welding and then gouging from the second side would take too long. They are used with MIG, flux-cored, stick and submerged arc welding, depending on the type of tile.

    Why use ceramic backing instead of a steel backing strip or welding from both sides?icon-minus-redicon-plus-red

    A steel backing strip stays in the joint, which can create a crevice, add weight and sometimes cause problems with fatigue or corrosion, and it must be the right material. Welding from both sides means turning the work, back gouging or grinding the root, and welding again.

    Ceramic tiles are removed afterwards, leaving a clean, smooth root without the extra steps or a permanent strip. Whether ceramic backing is allowed for a job is set by the welding procedure, so check what your specification permits.

    Which welding processes and positions can I use with ceramic backing?icon-minus-redicon-plus-red

    Ceramic backing is used with several arc welding processes, and tiles are made for particular processes, current levels and positions. Check the tile's specification and your welding procedure to confirm that the type suits your process and position.

    Ceramic backing supports the molten metal from behind. Do not assume it also protects the root from the air. For metals that oxidise easily on the underside, check your procedure and the material's requirements for whether extra root protection is needed.

    Why is my root bead poor or not fusing at the edges?icon-minus-redicon-plus-red

    The usual causes are a root gap that is too narrow or wide for the tile, a tile that does not sit squarely under the joint, poor contact between the tile and the metal, or settings and technique that don't suit the joint. Lack of fusion at the edges can come from too low a current or travel that is too fast.

    Welding over damp tiles can cause porosity. Check the fit-up, the tile position and the foil seal, and prove the settings on a test piece before welding the real joint.
