    Rapid Ref : 1G82-R

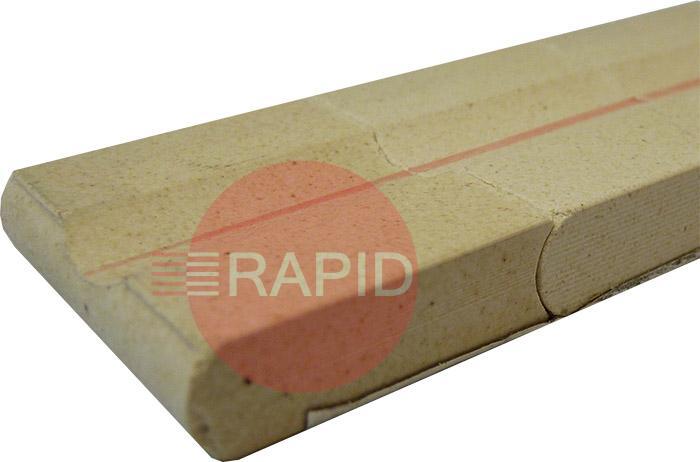

    Gullco Katbak 1G82-R Ceramic Weld Backing Tiles, 9m Box
    1G82-R

    £52.40  EX VAT
     Buy in 3 easy interest free payments of £17.47† with

    This tile is similar to the 1G42-R but it is thicker and more robust for heavier weld deposits and higher amperages. Each tile is radiused to form the strip around the cylinder.

    Can be used as shown below.

    • Impart X-ray quality back beads on root pass
    • Weld one side only
    • Deposit more weld metal
    • Root weld and fill in one pass
    • Eliminate defects and rework
    • Eliminate costly unnecessary gouging and grinding
    • Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
    • Special sizes and configurations available
    • Conveniently packaged and sealed in plastic for moisture-proof protection
    • Wider heat receptive pressure sensitive foil for improved adhesion to work piece

    9m - 30ft./ box
    Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.
    Gullco 1G82

    Specifications
    A 5/16 in
    7.9 mm
    B 1 1/4 in
    31.7 mm
    C 1 in
    25.4 mm
    D 13/32 in
    10.3 mm
    E 7/16 in
    11.1 mm
    F 1/16 in
    1.6mm
    G 3/16 in
    4.8 mm

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Ceramic Backing Tiles FAQs

    Straight answers to the questions people ask most when choosing and using ceramic weld backing tiles.

    Why use ceramic backing instead of a steel backing strip or welding from both sides?icon-minus-redicon-plus-red

    A steel backing strip stays in the joint, which can create a crevice, add weight and sometimes cause problems with fatigue or corrosion, and it must be the right material. Welding from both sides means turning the work, back gouging or grinding the root, and welding again.

    Ceramic tiles are removed afterwards, leaving a clean, smooth root without the extra steps or a permanent strip. Whether ceramic backing is allowed for a job is set by the welding procedure, so check what your specification permits.

    How are ceramic tiles fixed to the work?icon-minus-redicon-plus-red

    Most tiles come mounted on a strip of foil tape with an adhesive backing. The tape is pressed onto the back of the joint so the tile sits centred under the root gap, and the foil is smoothed down along its length so it makes good contact.

    Follow the instructions supplied with the tiles for preparing the surface and for the temperature range in which the adhesive works. In general, the metal should be clean and free of moisture, oil and loose material. Make sure the tiles butt neatly end to end so there is no gap between them.

    Which welding processes and positions can I use with ceramic backing?icon-minus-redicon-plus-red

    Ceramic backing is used with several arc welding processes, and tiles are made for particular processes, current levels and positions. Check the tile's specification and your welding procedure to confirm that the type suits your process and position.

    Ceramic backing supports the molten metal from behind. Do not assume it also protects the root from the air. For metals that oxidise easily on the underside, check your procedure and the material's requirements for whether extra root protection is needed.

    Why is my root bead poor or not fusing at the edges?icon-minus-redicon-plus-red

    The usual causes are a root gap that is too narrow or wide for the tile, a tile that does not sit squarely under the joint, poor contact between the tile and the metal, or settings and technique that don't suit the joint. Lack of fusion at the edges can come from too low a current or travel that is too fast.

    Welding over damp tiles can cause porosity. Check the fit-up, the tile position and the foil seal, and prove the settings on a test piece before welding the real joint.
