    Rapid Ref : GK-165-219

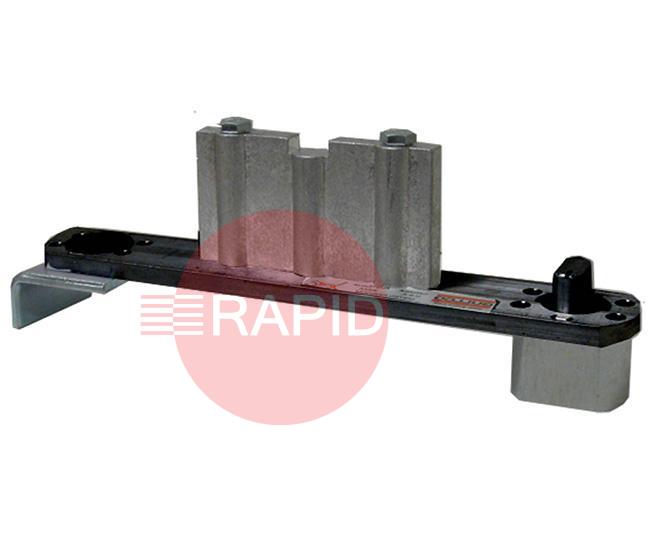

    Gullco Track Mounting Device - 1 On/Off Magnet and 1 Steel Angle Bracket
    GK-165-219

    £122.00  EX VAT
     Buy in 3 easy interest free payments of £40.67† with

    Track datum height 3-1/8” (79.4mm).

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    KAT Track Mounting Devices FAQs

    Answers to common questions about the magnets and brackets used to hold a welding carriage guide track in place on the work.

    What does a track mounting device do?icon-minus-redicon-plus-red

    A track mounting device fixes a straight or curved guide track to the workpiece so that a welding carriage can follow it accurately along the joint. It holds the track at the right height and position and stops it shifting under the weight and movement of the carriage.

    The usual types are magnets that grip steel and brackets that locate against an edge or angle. Which one suits you depends on the joint, the material and the position you are welding in, and the maker's manual explains how to fit them to your track.

    Should I choose an on/off magnet or a steel angle bracket?icon-minus-redicon-plus-red

    A switchable magnet is quick to place, move and release, and needs no clamping, but it only works on clean ferrous steel with enough thickness to carry the magnetic flux. A steel angle bracket locates against an edge or corner of the work and gives a positive stop, which helps on thin, non-ferrous, painted or rough surfaces where a magnet would grip poorly.

    Some set-ups use one of each, for example a magnet at one end and a bracket at the other. Choose according to your material and surface, and check the maker's guidance on how many mounting points a given track length needs.

    How do I switch an on/off magnet safely?icon-minus-redicon-plus-red

    Place the magnet against the steel first and then turn it on. Do not switch it on while it is loose, because a switched-on magnet can snap onto steel or other magnets with force, trap fingers and attract loose tools.

    Always check that the switch is turned fully to the on position, since a partly engaged magnet gives reduced holding force. Switch it off before you remove it, and keep your hands clear of the gap as it releases. Follow the maker's instructions for the unit you use.

    Why does my magnet hold well on some work and poorly on others?icon-minus-redicon-plus-red

    Rated pull is measured on thick, clean, flat steel under ideal conditions, so plan on getting less. Paint, rust and scale create a small gap between the magnet and the steel and reduce the force. Thin plate cannot carry as much magnetic flux as thick plate, and curved or uneven surfaces reduce contact.

    Direction matters too: a magnet that resists a straight pull can slide under a sideways load. Clean the surface, check the magnet is fully on and seated flat, and add another mounting point or a bracket if the track feels at all unsure.
