    Rapid Ref : 115100-060

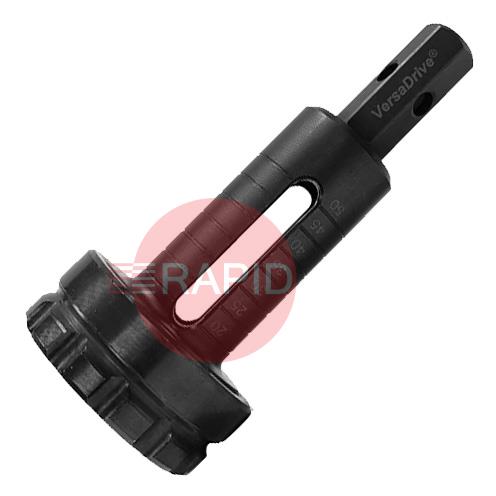

    HMT ImpactaDie Threader Holder & Flush Collar - For Cleaning & Repairing Threads
    115100-060

    £92.65  EX VAT
    SSP Suggested Selling Price = £109.00  YOU SAVE £16.35
     Buy in 3 easy interest free payments of £30.88† with

    Create external threads quickly and easily with this unique patent-pending impact die system.

    Ideal for creating/extending new threads, repairing existing damaged/deformed threads, or cleaning old threads clogged with surface coatings, rust or other unwanted material that can prevent threads from matting and turning properly.

    The guide collar system ensures the thread-cutting process runs straight and true. Once a thread is established, the flush-type collar can be used.

    • Guided threading for straight & true results
    • Use with Impact Wrenches
    • Create external threads up to 50mm long
    • Clean out existing external threads
    • Impact Chipbreaker action for effective swarf evacuation
    • Use on Impact to prevent dangerous kickback
    • VersaDrive patented shank and modular adaptors provide unbeatable jobsite flexibility
    • Impact-rated due to dual hardening process - allows up to 15X faster speed than traditional methods

    HMT ImpactaDie Threader FAQs

    Answers on choosing and using impact-driven die threaders to cut, extend, clean and repair external threads.

    What are metric coarse, metric fine and UNC threads?icon-minus-redicon-plus-red

    These describe the thread system and pitch. For a given diameter the larger pitch is the coarse thread and a smaller pitch is a fine thread, so the same metric diameter can exist in more than one pitch. Metric fine threads are written with the pitch, for example M10 x 1.25, while coarse sizes are normally listed by diameter alone.

    UNC is the coarse inch series and UNF is the fine one; a higher number of threads per inch means a finer thread. Do not assume a nut will fit just because the diameter matches: a coarse nut will not go onto a fine stud. A die is made for one diameter and pitch, so match both and verify the threads per inch or pitch before you start.

    Do I need to chamfer the end of the bar first?icon-minus-redicon-plus-red

    Yes, it helps. Die-threading guidance says to chamfer or bevel the end of the rod or bar before cutting, so the die can start square and grip properly.

    Some kits include a chamfering tool for this. Without a chamfer, the die may start badly, bind or cut a rough first thread. Remove any burr left from cutting the bar, and check that the end is clean and square before starting. Follow the instructions supplied with your kit for the size of chamfer.

    Do I need cutting fluid when threading?icon-minus-redicon-plus-red

    Yes. Cutting fluid reduces friction and heat, helps the die last longer and improves the finish of the thread. Die makers advise applying it to the die before and during cutting, and makers of impact dies say to apply it regularly to limit heat build-up.

    Apply it regularly rather than once, and especially when working on tougher or harder material. Threaded parts can become very hot, so allow them to cool or handle them with care. Wipe off surplus fluid afterwards and check the die and holder for swarf.

    How do I clear swarf and avoid the die jamming?icon-minus-redicon-plus-red

    The usual die-threading technique is to turn forward for a short way, then ease back slightly to break the chip. This also lets fresh lubricant reach the cutting edges. An impact die has a chip-breaking action built into it, but it still pays to check the die and holder or collar periodically and clear any swarf that builds up.

    Keep the tool square to the work and avoid sideways movement or tilting, which can damage the die. Apply firm forward pressure when starting the cut and when reversing off the thread. If the die stalls, back off and clear it instead of forcing it.
