    Rapid Ref : 301126-SET1

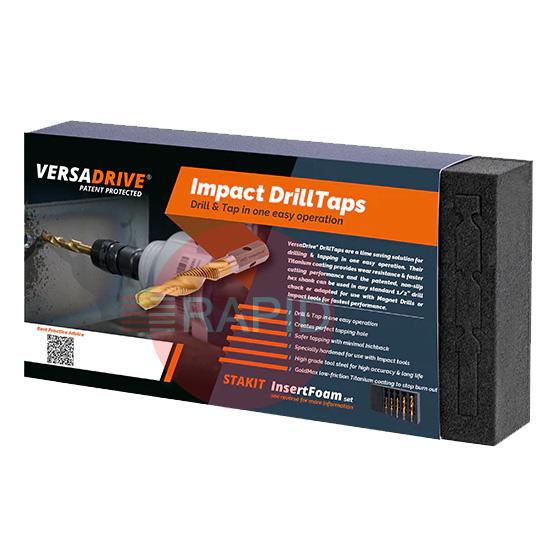

    HMT VersaDrive Spiral Flute Combi Drill Tap InsertFoam 4 Piece Set (1/4 - 1/2" UNC)
    301126-SET1

    Click here to see what's included

    £176.59  EX VAT
    SSP Suggested Selling Price = £207.75  YOU SAVE £31.16
     Buy in 3 easy interest free payments of £58.86† with

    All VersaDrive Sheet Metal Impacta-Drill Taps can be used in any standard 1/2" drill chuck for cordless or pistol drill use or adaptor for use in a Magnet Drill or Impact Wrench.

    Ground Flute Twist Drill Creates the perfect Tapping Hole. Safer Tapping with Minimal Kickback; specially hardened for impact wrench use. High-grade tool Steel with ground flutes for high accuracy & long life. GoldMax low friction Titanium Coating to stop heat burnout. High Strength, Non-slip shank design.

    • Ground flute twist drill creates the perfect tapping hole
    • Safer tapping with minimal kickback
    • Specially hardened for impact wrench use
    • High-grade tool steel for high accuracy & long life
    • GoldMax low friction titanium coating to stop burnout
    • High strength, non-slip shank design
    • Drill & tap in one easy operation

    Product Details

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    HMT Drill Taps FAQs

    Answers to common questions about combination drill-taps that drill and thread a hole in a single operation.

    What is a combination drill-tap and what does it do?icon-minus-redicon-plus-red

    A combination drill-tap is a single tool with a drill point at the front and a tap section behind it. It drills the hole, usually forms a small lead-in chamfer, and then cuts the thread, all in one pass without changing tools.

    Because the hole and the thread are cut by the same tool in the same setup, they stay in line with each other. The drill diameter is chosen to suit the thread size, so you do not need to look up a separate tap drill for each job. It is mainly used where a lot of threaded holes are needed quickly, such as fabrication and maintenance work.

    Why do I need cutting fluid when using a drill-tap?icon-minus-redicon-plus-red

    Tapping is a high-friction cut because the tap flanks are in contact with the work along the whole thread. Without proper lubrication, friction and heat build up, the tool wears faster and the thread finish suffers, and the risk of the tool seizing and breaking goes up.

    A purpose-made cutting or tapping fluid is usually the better choice, and tougher materials such as stainless and alloy steels generally need more lubrication than aluminium or cast iron. Apply it before you start and keep topping it up, especially in deeper holes where fluid struggles to reach the cutting edges.

    Can I use a drill-tap in a blind hole?icon-minus-redicon-plus-red

    It depends on the design, so check the maker's instructions for your tool. Some combination tools are specifically recommended for through holes only, because the chips have nowhere to go at the bottom of a blind hole.

    If a blind hole is unavoidable, remember that the drill point and the unthreaded lead-in reduce the useful thread depth, and chips build up at the bottom and reduce it further. Allow extra depth beyond the thread you need, clear swarf regularly, and never drive the tool into the bottom of the hole, because that is a common way to break it. For deep blind holes, a separate drill and a spiral-flute tap are often the safer approach.

    How do I choose the right thread size and type?icon-minus-redicon-plus-red

    Choose the thread to match the bolt, stud or fitting that will go into it. That means matching both the diameter and the pitch, and also the thread form: metric, UNC (unified coarse inch) and BSW (Whitworth) are not interchangeable even when the sizes look close.

    Metric pitch is given in millimetres, while inch threads are given as threads per inch. A pitch gauge and calipers on the mating male thread will tell you what you have. A quick check is that a correct bolt should start by hand for several turns; if it does not, it is the wrong thread. Do not force a mismatched thread, as that risks cross-threading and a weak joint.
