    Rapid Ref : TP0X-HR

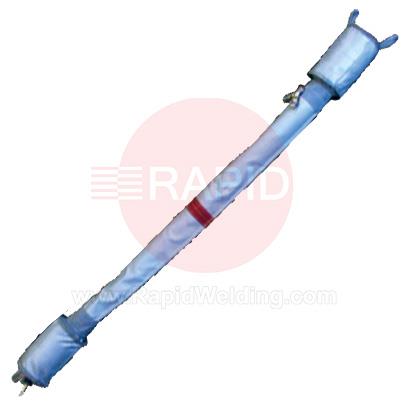

    Heat Resistant Inflatable Twin Purge Bag System, 2 - 7" (51 - 178mm) - Up to 500°C
    TP0X-HR

    Select Option
    Prices From £372.00 ex VAT

    Designed for use when high temperatures are encountered in the welding process, such as pre & post-heating. They are heat resistant up to 350°c for up to 24 hours and 500°c for short periods. Mirroring the features of the standard range of inflatable purging systems, the heat-resistant range comes with a luminous positioning band for rapid centring and set-up. These systems can be in place throughout the pre-heating, welding and post-heat treatment cycles, allowing the weld to be purged continuously for up to 24 hours if necessary.

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Inflatable Twin Purge Bags FAQs

    Answers to common questions about choosing, positioning and using inflatable twin purge bag systems for back purging pipe welds.

    How does an inflatable twin purge bag system work?icon-minus-redicon-plus-red

    A twin purge bag system is two inflatable bags joined by a spinal tube. You position one bag on each side of the weld joint inside the pipe, then connect the purge gas. The gas inflates the bags so they seal against the pipe bore, and once a preset pressure is reached a valve releases gas into the small space between them.

    Because only that short section is purged, the volume of gas to be displaced is small, so the purge is usually much quicker than filling the whole pipe. Air leaves through exhaust tubes built into the bags. The same gas connection normally handles both inflation and purging, so check the maker's instructions for your system.

    How do I choose the right size of twin purge bag?icon-minus-redicon-plus-red

    Choose by the internal diameter (bore) of the pipe, not just its nominal size. Pipe of the same nominal size can have a different bore depending on wall thickness, and each bag size only seals properly across a stated range of internal diameters.

    Measure the actual bore, then pick the bag whose working range covers it. A bag that is too small may not seal, and one that is too large can crease or be over-stretched. Fittings such as elbows and tees can change the bore at the joint, so measure there too. Always check the data sheet for the range that applies to your system.

    Where should I position the bags in relation to the weld?icon-minus-redicon-plus-red

    The bags need to sit either side of the joint, far enough away that the heat of welding does not damage them but close enough that the purge volume stays small and the purge is quick. A luminous strip or marker on the system lets you centre it on the weld gap by looking through the joint gap.

    The right distance depends on the pipe size, the heat input and the maker's guidance, so follow the instructions for your bags. Keep the bags clear of tack welds and any sharp edges or burrs on the bore, as these can damage the material.

    Why must the weld gap be sealed before I start the purge?icon-minus-redicon-plus-red

    Any open gap lets purge gas escape and air get drawn in, so the oxygen level stays high and the root can oxidise. Sealing the joint with purge tape or similar sealing tape keeps the gas in the purged space and helps the oxygen level fall.

    Seal the full length of the joint, press the tape down firmly and keep it clear of the area being welded, then peel it back progressively as you weld. Joints with a root gap or poor fit-up leak more, so take extra care with those. Use tape that is suitable for the job and leaves no residue on the weld preparation.
