    Rapid Ref : TPXX

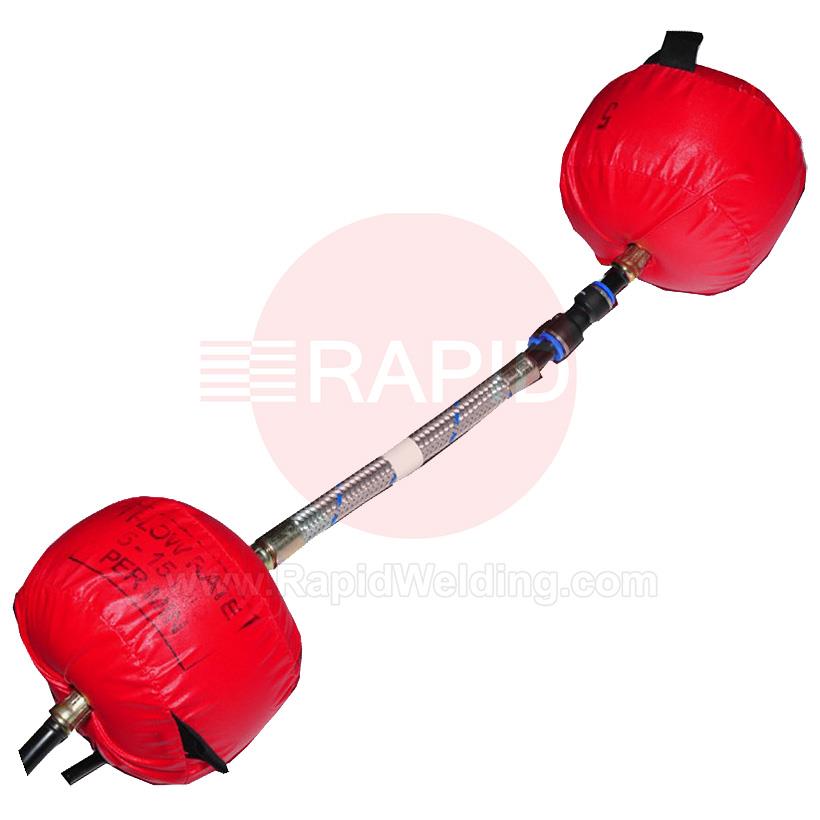

    Inflatable Twin Purge Bag System, 2 - 12" (51 - 305mm)
    TPXX

    Select Option
    Prices From £116.40 ex VAT

    Twin Bag Purging Systems consist of two inflatable bags connected by a spinal tube and a pressure valve. The system is positioned by viewing the luminous tape through the weld joint gap. E-Z ZONE TAPE is used to seal the weld gap and purge gas flow can commence at up to 10 Ltr/min.

    The bags inflate and a seal is created on either side of the weld joint. The pressure valve then releases gas into the weld chamber and the purging process commences.  By using a GBC Oxygen Monitor to constantly measure the oxygen content in the weld chamber the welder will know when to reduce the gas flow to c. 5 Ltr/min and commence welding.

    The system is left in position post-welding with gas flowing until the weld joint temperature drops to below oxidation levels, then the purge gas feed is disconnected, the bags deflate, and the system can be withdrawn.

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Inflatable Twin Purge Bags FAQs

    Answers to common questions about choosing, positioning and using inflatable twin purge bag systems for back purging pipe welds.

    Where should I position the bags in relation to the weld?icon-minus-redicon-plus-red

    The bags need to sit either side of the joint, far enough away that the heat of welding does not damage them but close enough that the purge volume stays small and the purge is quick. A luminous strip or marker on the system lets you centre it on the weld gap by looking through the joint gap.

    The right distance depends on the pipe size, the heat input and the maker's guidance, so follow the instructions for your bags. Keep the bags clear of tack welds and any sharp edges or burrs on the bore, as these can damage the material.

    Do I need an oxygen monitor when using purge bags?icon-minus-redicon-plus-red

    It is strongly recommended. Time-based purging is only a rough guide, because leaks, joint gaps and pipe volume all affect how quickly air is displaced. A purpose-made oxygen monitor connected to the exhaust or purge space shows when the oxygen level is low enough to start welding.

    The oxygen level you need depends on the material, the weld specification and your procedure, so work to the figure in your welding procedure rather than a general rule. The monitor can also tell you when it is safe to reduce the gas flow once the target is reached.

    Why must the weld gap be sealed before I start the purge?icon-minus-redicon-plus-red

    Any open gap lets purge gas escape and air get drawn in, so the oxygen level stays high and the root can oxidise. Sealing the joint with purge tape or similar sealing tape keeps the gas in the purged space and helps the oxygen level fall.

    Seal the full length of the joint, press the tape down firmly and keep it clear of the area being welded, then peel it back progressively as you weld. Joints with a root gap or poor fit-up leak more, so take extra care with those. Use tape that is suitable for the job and leaves no residue on the weld preparation.

    What gas flow should I use to purge and weld?icon-minus-redicon-plus-red

    Use a gentle, controlled flow. Too high a flow causes turbulence, which can draw air back in, and at the weld it can blow into the molten root. Many makers give a maximum inflation and purge flow for their bags, so do not exceed the figure on your data sheet.

    A common approach is to purge at a higher setting until the oxygen monitor shows the target level, then reduce the flow before and during welding. The exact figures depend on the pipe size, the gas, your procedure and the equipment, so follow the maker's instructions and your welding procedure specification.
