    Rapid Ref : KPKJH-102

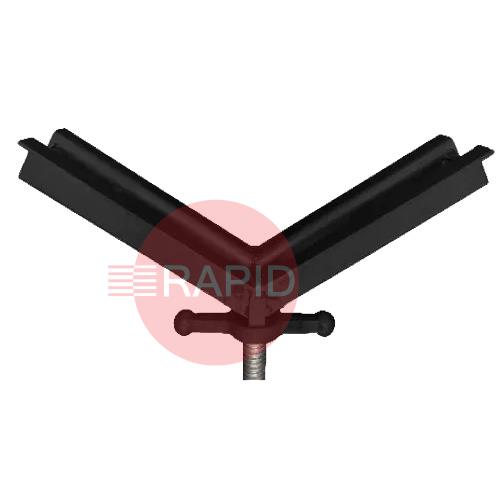

    Key Plant Large V-Head. Up to 24" (610mm)
    KPKJH-102

    £64.00  EX VAT
    SSP Suggested Selling Price = £72.00  YOU SAVE £8.00
     Buy in 3 easy interest free payments of £21.33† with
    • Load capacity: 1588kg (3500lb)
    • Pipe size: Up to 24" (610mm)
    • Weight: 7.6kg (17lbs)

    Related Items

    Pipe Stands FAQs

    Practical answers on choosing, setting up and looking after adjustable pipe stands and their heads.

    How do I read the load rating on a pipe stand?icon-minus-redicon-plus-red

    The rating in the maker's manual or on the stand is normally the maximum load for one stand, not for a set. Split the weight of the pipe between the stands and keep each one within its own limit. If a pipe is heavy, add another stand rather than overloading one.

    Fitting accessories such as different heads can lower the maximum capacity, and accessory heads can carry a lower rating than the stand itself, so check the rating of every head and attachment as well as the base. If you cannot find the rating or are unsure, do not use the stand until you have checked the maker's instructions.

    Can I adjust the height or move a pipe stand with the pipe on it?icon-minus-redicon-plus-red

    No. Makers of pipe jack stands say never to change the height of a stand, or move it, while it is under load. Remove the load first, then adjust or move the stand.

    Set the height before the load goes on, keep every stand supporting one pipe at the same height, and lower the pipe on gently rather than dropping it onto the stand. Keep hands and other body parts out from between the pipe and the stand head.

    Lock the head assembly before moving a stand, and do not wind a stand beyond the maker's height limit marking, as an over-extended stand is unstable.

    What damage means a pipe stand should be taken out of use?icon-minus-redicon-plus-red

    Check a stand for damage before each use. Makers list signs such as legs or base that are bent, twisted or showing fatigue, cracked or rusted welds, a bent lock ring (which points to overload), a cracked, bent or worn head, a head that tilts or rotates under load, and a pipe that cannot be centred in the V-head.

    Any of these can let the pipe slip, roll or fall, or the stand tip. Take a damaged stand out of use. If the maker does not supply the part as a replacement, do not try to repair it.

    Under the Provision and Use of Work Equipment Regulations, the HSE says work equipment must be maintained in an efficient state, working order and good repair and inspected so faults are caught early.

    What should I do if the pipe on a stand starts to slip or tip?icon-minus-redicon-plus-red

    Do not reach out to steady or catch it. Makers say that if a load becomes unstable you should move away from the work area quickly, because a falling pipe can cause serious injury.

    Never allow anyone to stand beneath a supported pipe, and keep hands clear of the gap between the pipe and the stand head when positioning it.

    After an incident, remove the load, check the stand for bent legs, a bent lock ring or a damaged head before it is used again, and think about whether the pipe needs another stand, a hold-down device or a better base. Review the set-up with your risk assessment.
