Weld Positioning Equipment FAQs
Straight answers to the questions people ask most when choosing and using a welding positioner.
What is a welding positioner and what is it used for?

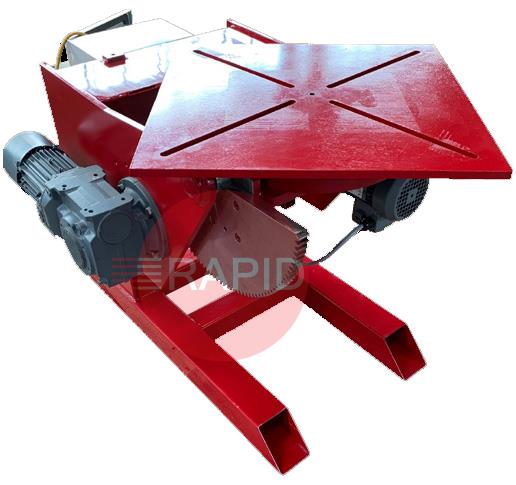

A welding positioner holds the workpiece and turns it, so you can weld in a comfortable, favourable position instead of moving around the work. The most common type is the rotary positioner, a powered turntable or faceplate that rotates round parts such as pipes, flanges, tanks and shafts under a stationary torch.
This gives more even welds, better control of the weld pool and less operator fatigue, and it makes circumferential welds much easier. It also suits automated welding and cladding, because the work moves at a steady, repeatable speed.
How do I choose the right capacity for a positioner?

Capacity is the weight of work a positioner is rated to carry, but the rating depends on how the load sits on the table. A load centred on the axis of rotation is the easy case. If the centre of gravity is offset from the centre, or the table is tilted, the positioner can safely carry less.
The maker normally gives ratings for different offsets and angles, so check these against your heaviest and most awkward workpiece, and allow a good margin. Remember to include any fixtures, chucks and clamps in the weight.
Why does rotation speed matter and how is it controlled?

For circumferential welds, the rotation speed sets the travel speed of the weld, which affects penetration, bead shape and heat input. The speed you need depends on the process, the diameter of the work, the material and the current.
Positioners normally have variable speed control, so you can set a steady speed and repeat it. Many have forward and reverse, a footswitch or remote control, and some programmable models can set the speed, direction and sequence for you. Remember that a given rotation speed gives a faster surface speed on a larger diameter.
How do I hold the work on a positioner?

Work can be held with a chuck, clamps, bolted fixtures, or purpose-made tooling. A self-centring chuck suits round parts such as pipes and bars, and a quick-action chuck makes loading and unloading faster. T-slotted tables allow clamps and fixtures to be bolted down.
Whatever you use, the work must be held securely and as close to the centre as possible, because the turning load can throw the part off if it is loosely held. Check the grip each time, and make sure fixtures are heavy enough for the work and heat.
